• ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Infiniti I30 (96) (NM1-HDR6)
1 1

ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Infiniti I30 (96) (NM1-HDR6)

ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Infiniti I30 (96) (NM1-HDR6)

NM1-HDR6

In stock

$535.00 USD
$660.00 USD $535.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 6 Pad Clutch Kit for the Infiniti I30 (96) is a high-performance clutch upgrade designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, utilizing an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes high-quality, ceramic friction material on the 6-pad rigid race discs, providing excellent grip and heat resistance. Constructed with precision cover stampings, the components deliver rigidity and reliability, making it suitable for aggressive street and race applications.

This clutch kit is designed specifically for the 1996 Infiniti I30, offering a direct replacement for stock components. It is ideal for enthusiasts seeking increased holding capacity and durability for spirited driving or track use. The kit is a bolt-on upgrade that does not require modifications for installation, ensuring a straightforward upgrade process. Suitable for use in street, track, or performance driving scenarios, this clutch kit enhances power transfer and overall drivability. It includes all necessary components for installation, providing a comprehensive solution for high-performance clutch needs.

Overview

ACT HD/Race Rigid 6 Pad Kit

NM1-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 14.6
  • Torque Capacity (ft/lbs.): 475
  • Torque Capacity Over OE: 0.9
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1985-2001 Nissan Maxima
  • 1996-1999 Infiniti I30

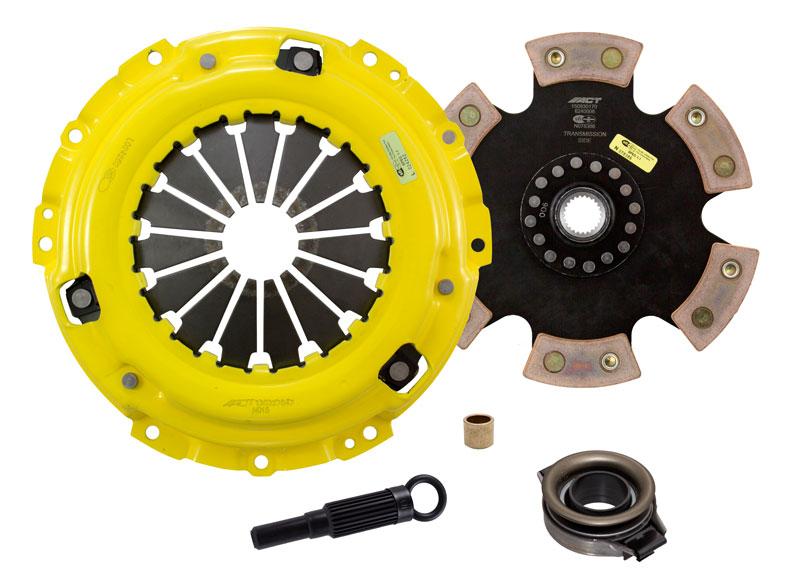

What's In The Box?

  • Clutch Friction Disc (6240006)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N015)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB809)

References

Warranty

  • Manufacturer 1 Year Warranty
