ACT HD/Race Rigid 6 Pad Kit | Multiple Fitments (TC5-HDR6)

ACT HD/Race Rigid 6 Pad Kit

TC5-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

• Product Weight (lbs.): 13.6
• Torque Capacity (ft/lbs.): 355
• Torque Capacity Over OE: 0.89
• Pilot Bushing Included: Yes
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.8
• Clutch Disc Diameter (mm): 224
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter (in.): 1.125
• Alignment Tool Included: Yes

Applications

• 1977-1985 Toyota Celica
• 1986-1988 Toyota Van
• 1977-1981 Toyota Corona
• 1978-1988 Toyota Pickup
• 1984-1988 Toyota 4Runner

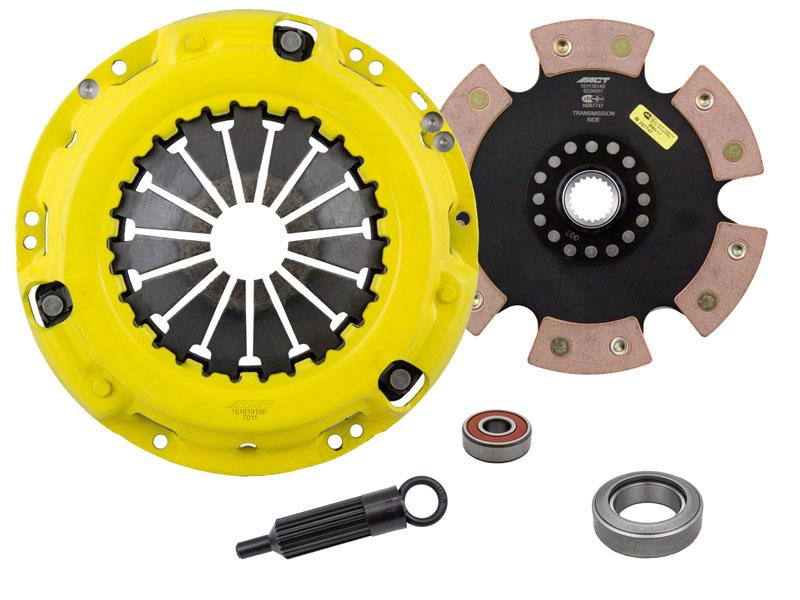

What's In The Box?

• Clutch Friction Disc (6224007)
• Clutch Alignment Tool (AT11)
• Clutch Pilot Bearing (PB1004)
• Clutch Release Bearing (RB201)
• Clutch Pressure Plate (T011)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
