• ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Toyota 4Runner (87) (TS1-HDR6)
1 1

ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Toyota 4Runner (87) (TS1-HDR6)

ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Toyota 4Runner (87) (TS1-HDR6)

TS1-HDR6

In stock

$519.00 USD
$641.00 USD $519.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 6 Pad Clutch Kit for the Toyota 4Runner (87) is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes 6-pad rigid race discs crafted from high-quality ceramic friction materials, providing excellent grip and heat resistance. Precision cover stampings enhance rigidity and consistency, making this clutch kit suitable for aggressive street and race applications.

Designed specifically for the 1987 Toyota 4Runner, this clutch kit is a direct replacement for stock components, offering improved holding capacity and durability. It is ideal for off-road, towing, and high-performance driving scenarios where increased clamping force is essential. The installation involves replacing the existing clutch components with the included pressure plate and race discs, ensuring a straightforward upgrade. Compatible with vehicles equipped with the original clutch setup, this kit is engineered to deliver reliable performance under heavy loads and high RPM conditions, making it a preferred choice for enthusiasts seeking maximum clutch life and performance.

Overview

ACT HD/Race Rigid 6 Pad Kit

TS1-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 15.8
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 0.69
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1982-1985 Toyota Celica
  • 1985-1987 Toyota 4Runner
  • 1984-1987 Toyota Cressida
  • 1985-1987 Toyota Pickup
  • 1986-1988 Toyota Supra

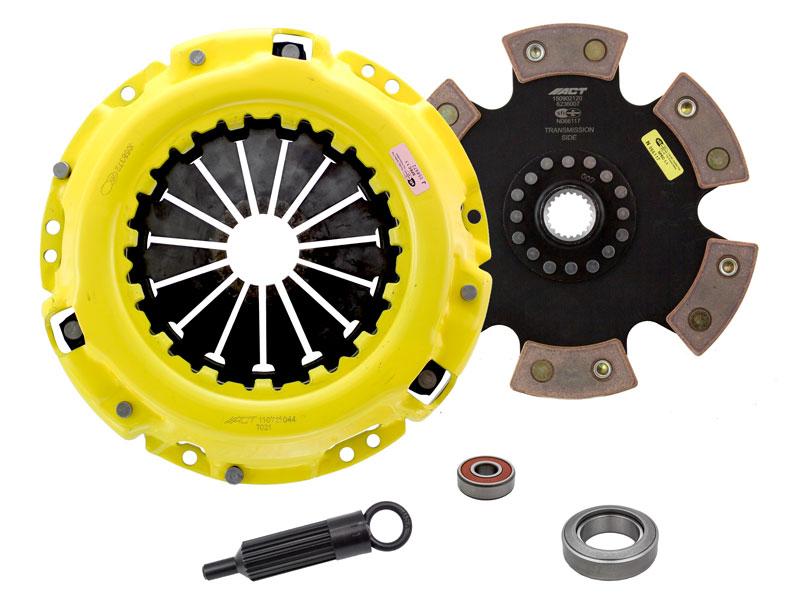

What's In The Box?

  • Clutch Friction Disc (6236007)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T021)

References

Warranty

  • Manufacturer 1 Year Warranty
