| Year | Make | Model |
|---|---|---|
| 2004 - 2006 | Scion | xA Base |
| 2004 - 2006 | Scion | xB Base |
| 2000 - 2005 | Toyota | Echo Base |
| 2007 - 2012 | Toyota | Yaris Base |
| 2012 - 2014 | Toyota | Yaris L |
| 2007 - 2009 | Toyota | Yaris S |
| 2012 - 2014 | Toyota | Yaris SE |
ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Toyota Echo 2000 (TS6-HDR6)
ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Toyota Echo 2000 (TS6-HDR6)
SKU:TS6-HDR6
Out of stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The ACT Heavy Duty Race Rigid 6 Pad Clutch Kit for the Toyota Echo 2000 (TS6-HDR6) is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT’s most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under stress. The kit includes a 6-pad rigid race disc constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. Built with precision cover stampings, the components deliver rigidity and consistency, making it suitable for aggressive street or race applications.
This clutch kit is specifically designed for the 2000 Toyota Echo equipped with the TS6 transmission. It serves as a direct replacement upgrade for stock clutch components, offering enhanced holding capacity and durability for high-performance driving. Installation involves bolt-on replacement of the existing clutch assembly, with all necessary components included in the kit. Ideal for track use, spirited street driving, or applications requiring increased clamping force, this clutch kit ensures reliable engagement and long-lasting performance. Compatibility is optimized for vehicles with similar specifications, providing a robust solution for enthusiasts seeking improved clutch performance.
Share
Overview
Overview
ACT HD/Race Rigid 6 Pad Kit
TS6-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
Features
- Product Weight (lbs.): 11.7
- Torque Capacity (ft/lbs.): 305
- Torque Capacity Over OE: 0.69
- Pressure Plate Type: Heavy Duty
- Release Bearing Included: Yes
- Clutch Disc Diameter (in.): 8.3
- Clutch Disc Diameter (mm): 212
- Disc Material: Ceramic
- Input Spline Quantity: 21
- Input Shaft Diameter (in.): 0.9375
Applications
- 2004-2006 Scion xA
- 2000-2005 Toyota Echo
- 2004-2006 Scion xB
- 2007-2013 Toyota Yaris

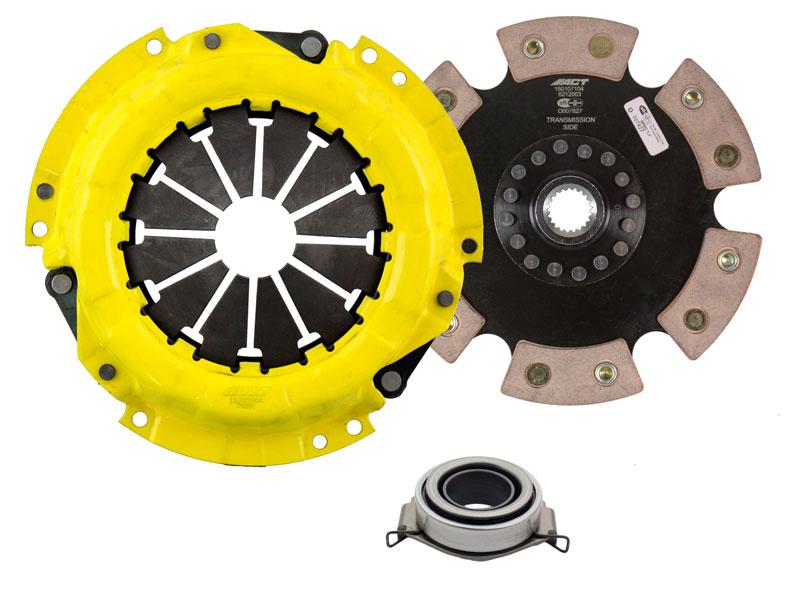

What's In The Box?
- Clutch Friction Disc (6212003)
- Clutch Release Bearing (RB124)
- Clutch Pressure Plate (T030)
References
Warranty
- Manufacturer 1 Year Warranty
