ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Mazda 929 (1988) (Z64-HDR6)

ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Mazda 929 (1988) (Z64-HDR6)

Z64-HDR6

Out of stock

$480.00 USD
$593.00 USD $480.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 6 Pad Clutch Kit is a high-performance clutch assembly designed for demanding racing applications. Featuring ACT's most popular Heavy Duty pressure plate, this kit utilizes an exclusive diaphragm design that increases clamp load, reduces deflection, and enhances overall clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The kit includes a 6-pad rigid race disc constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. Built with precision cover stampings, the components deliver rigidity and consistency, making it ideal for high-stress driving scenarios.

This clutch kit is compatible with the 1988 Mazda 929 (Z64 chassis) and is intended for performance-oriented street and race use. It serves as a direct replacement for stock components, offering increased clamping force and durability for aggressive driving. The kit is designed for easy bolt-on installation, ensuring a secure fit and reliable operation. Suitable for vehicles subjected to high horsepower or frequent track use, this clutch assembly enhances power transfer and pedal feel. No additional components are required, making it a comprehensive upgrade for enthusiasts seeking maximum performance and longevity.

Overview

ACT HD/Race Rigid 6 Pad Kit

Z64-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 14.9
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 0.72
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1988-1991 Mazda 626
  • 1988-1992 Mazda MX-6
  • 1989-1992 Ford Probe
  • 1988-1991 Mazda 929

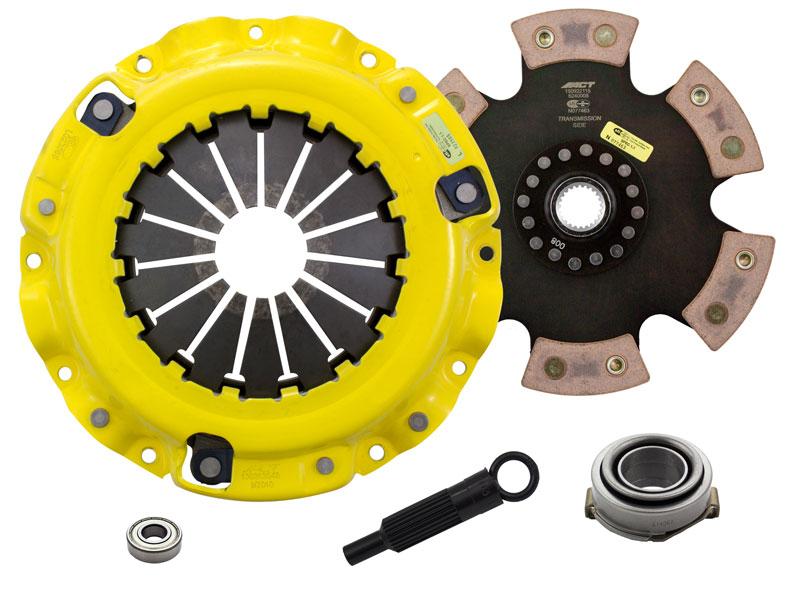

What's In The Box?

  • Clutch Friction Disc (6240008)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
