• ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Suzuki Samurai (86-95) (SZ3-HDG4)
1 1

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Suzuki Samurai (86-95) (SZ3-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Suzuki Samurai (86-95) (SZ3-HDG4)

SZ3-HDG4

In stock

$606.00 USD
$606.00 USD $606.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

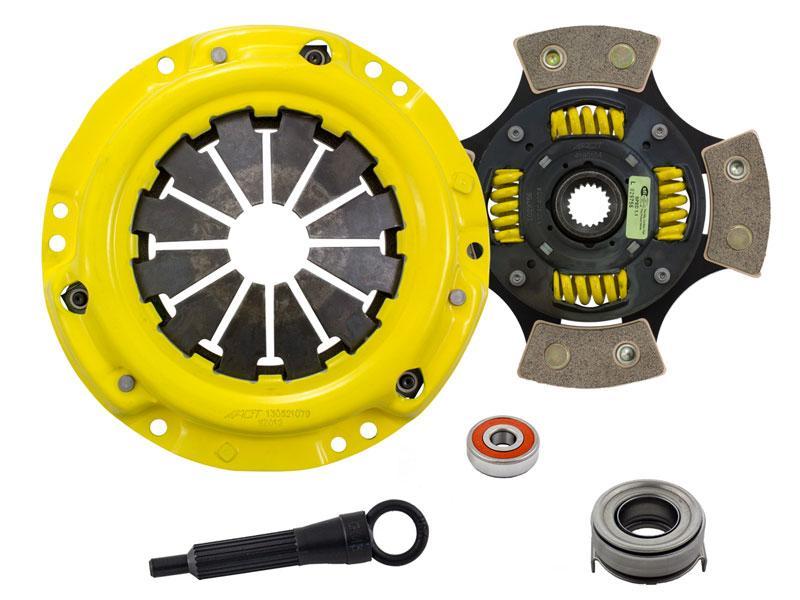

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Suzuki Samurai (1986-1995) is a high-performance clutch assembly designed for demanding driving conditions. This kit includes ACT's most popular Heavy Duty pressure plate, featuring an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate components undergo a four-stage heat-treating process to ensure durability and consistent performance. The 4-pad spring-centered race disc provides reliable engagement and smooth operation, making it suitable for aggressive driving and racing applications. Constructed with precision stampings, the clutch components deliver rigidity and stability under high-stress conditions, enhancing overall drivetrain performance.

This clutch kit is specifically engineered for 1986-1995 Suzuki Samurai models, providing a direct replacement for stock components. It is ideal for off-road, racing, or heavy-duty use where increased clamping force and durability are required. The assembly is a bolt-on upgrade that requires no modifications for installation, making it suitable for both street and track use. The kit includes the pressure plate and clutch disc, ensuring compatibility and ease of installation. Designed to withstand high heat and stress, this clutch kit enhances vehicle performance during aggressive driving, off-road adventures, or competitive racing scenarios.

Overview

1986-1995 Suzuki Samurai HD/Race Sprung 4 Pad Clutch Kit by ACT

SZ3-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 9.2
  • Torque Capacity (ft/lbs.): 225
  • Torque Capacity Over OE: 88%
  • Disc Material: Ceramic
  • Clutch Disc Diameter (Inches): 7.5
  • Clutch Disc Diameter (Millimeters): 190
  • Input Shaft Diameter (inches): 0.875
  • Pressure Plate Type: Heavy Duty

Benefits

  • Light to moderate pedal effort
  • Aggressive engagement
  • OE to mild gear rattle
  • Moderate friction life
  • Uses select ceramic friction materials for high heat tolerance and maximum performance
  • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 1986-1995 Suzuki Samurai

What's In The Box?

  • 1 - ACT HD/Race Sprung 4 Pad Clutch Kit

Warranty

  • ACT 1-Year Limited Warranty
