• ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Suzuki Esteem (95) (SZ1-HDG4)
1 1

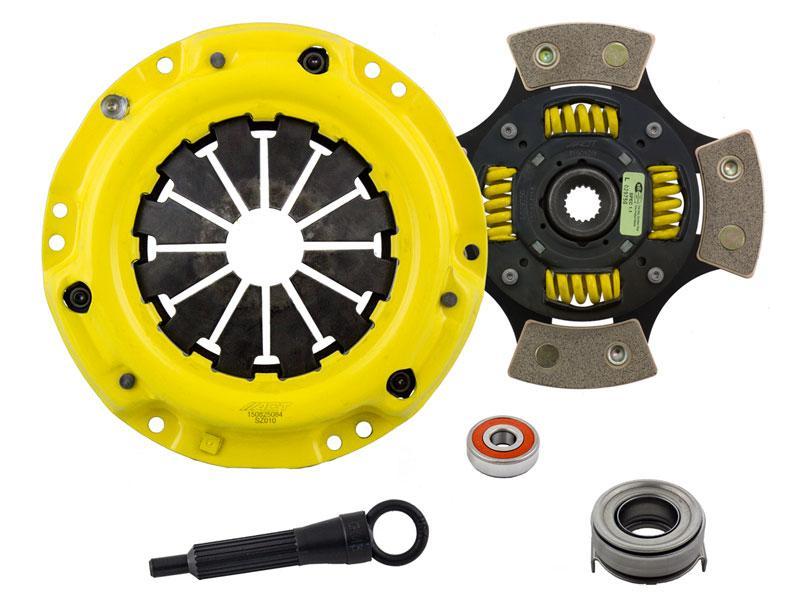

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Suzuki Esteem (95) (SZ1-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Suzuki Esteem (95) (SZ1-HDG4)

SZ1-HDG4

Out of stock

$595.00 USD
$595.00 USD $595.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate components undergo a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 4-pad spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this clutch offers enhanced rigidity and stability, making it suitable for aggressive street and track use.

This clutch kit is compatible with the 1995 Suzuki Esteem (SZ1) models and is intended as a direct replacement or upgrade for stock components. It is ideal for enthusiasts seeking increased durability and performance in high-stress driving scenarios. The assembly is designed for bolt-on installation, ensuring straightforward setup without modifications. The kit provides all necessary components for a complete upgrade, delivering improved torque capacity and longevity. Suitable for street, track, or racing applications, this clutch enhances vehicle responsiveness and overall driving experience.

Overview

HD/Race Sprung 4 Pad Clutch Kit by ACT

SZ1-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 8.9
  • Torque Capacity (ft/lbs.): 225
  • Torque Capacity Over OE: 92%
  • Disc Material: Ceramic
  • Clutch Disc Diameter (Inches): 7.5
  • Clutch Disc Diameter (Millimeters): 190
  • Input Shaft Diameter (inches): 0.75
  • Pressure Plate Type: Heavy Duty

Benefits

  • Light to moderate pedal effort
  • Aggressive engagement
  • OE to mild gear rattle
  • Moderate friction life
  • Uses select ceramic friction materials for high heat tolerance and maximum performance
  • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 1995-2001 Suzuki Esteem
  • 1989-2001 Suzuki Swift
  • 1992-1997 Geo Metro
  • 1987-1988 Chevrolet Sprint

What's In The Box?

  • 1 - ACT HD/Race Sprung 4 Pad Clutch Kit

Warranty

  • ACT 1-Year Limited Warranty
