ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Crown (67-70) (T41-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Crown (67-70) (T41-HDG4)

T41-HDG4

In stock

$577.00 USD
$577.00 USD $577.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Toyota Crown (1967-1970) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance. The kit includes a precision-made cover with stampings that provide rigidity and stability during operation. The 4-pad spring-centered race disc is engineered to damp torsional vibrations effectively, enhancing drivability and reducing shock loads on drivetrain components.

This clutch kit is specifically engineered for the 1967-1970 Toyota Crown models, offering a direct replacement for stock components. It is suitable for street use, track days, and racing applications where increased clamping force and durability are essential. The assembly is a bolt-on upgrade that requires no additional modifications for installation. The kit provides a reliable, high-performance solution for drivers seeking improved engagement and longevity under high-stress conditions. Compatible with the original flywheel and transmission setup, this clutch kit ensures optimal performance and consistent power transfer for enthusiast and professional drivers alike.

Overview

ACT HD/Race Sprung 4 Pad Kit

T41-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 14.4
  • Torque Capacity (ft/lbs.): 355
  • Torque Capacity Over OE: 0.89
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224

Applications

  • 1967-1970 Toyota Crown

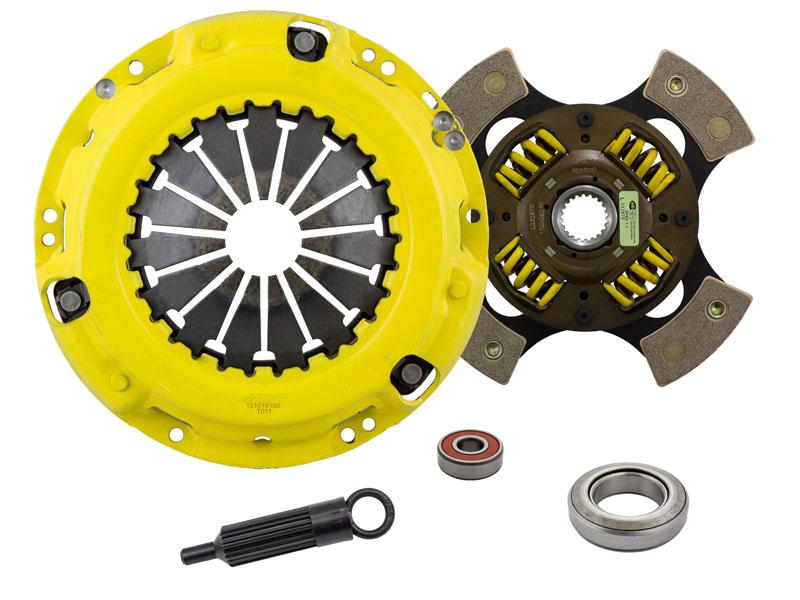

What's In The Box?

  • Clutch Friction Disc (4224207)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB010)
  • Clutch Pressure Plate (T011)

References

Warranty

  • Manufacturer 1 Year Warranty
