ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Corona (70-71) (TK2-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Corona (70-71) (TK2-HDG4)

TK2-HDG4

In stock

$477.00 USD
$589.00 USD $477.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for Toyota Corona (70-71) is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and reliable performance under high-stress applications. The inclusion of a 4-pad spring-centered race disc provides effective torsional vibration damping, enhancing drivability and reducing shock loads during aggressive shifts. Constructed with precision cover stampings, this clutch kit delivers rigidity and consistency, making it suitable for both street and race use.

Designed specifically for 1970-1971 Toyota Corona models, this clutch kit is a direct replacement for stock components, offering increased clamping force and durability. It is ideal for performance enthusiasts seeking a reliable upgrade for street, track, or rally applications. The kit is compatible with the original flywheel and requires no additional modifications for installation. Suitable for vehicles with similar specifications, this clutch assembly ensures improved power transfer and longevity under high-performance conditions. The package includes the pressure plate, race disc, and necessary hardware for a straightforward bolt-on installation.

Overview

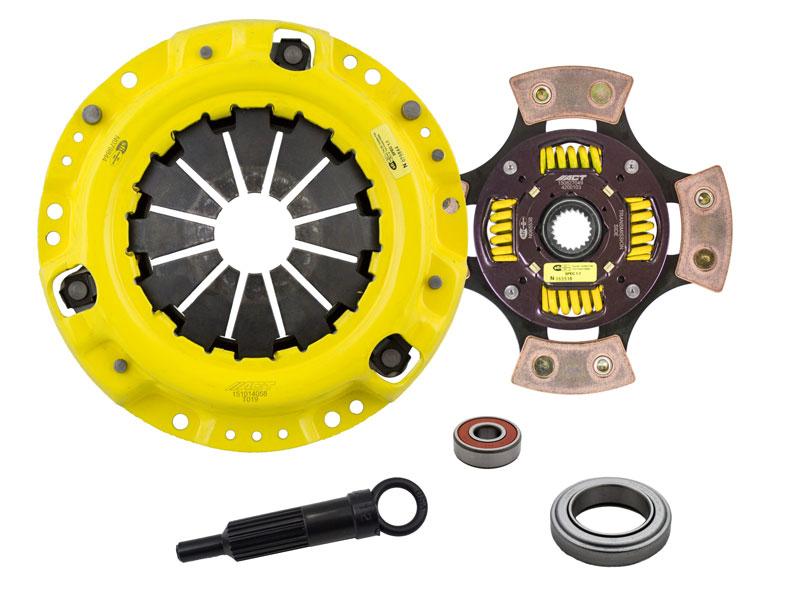

ACT HD/Race Sprung 4 Pad Kit

TK2-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.5
  • Torque Capacity (ft/lbs.): 265
  • Torque Capacity Over OE: 0.86
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1970-1971 Toyota Corona

What's In The Box?

  • Clutch Friction Disc (4200103)
  • Clutch Alignment Tool (AT12)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB005)
  • Clutch Pressure Plate (T019)

References

Warranty

  • Manufacturer 1 Year Warranty
