ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Corolla (80-82) (TL4-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Corolla (80-82) (TL4-HDG4)

TL4-HDG4

Out of stock

$579.00 USD
$579.00 USD $579.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for Toyota Corolla (1980-1982) is a high-performance clutch assembly designed for demanding driving conditions. This kit includes ACT's most popular Heavy Duty pressure plate, featuring an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under stress. The 4-pad spring-centered race disc is engineered to damp torsional vibrations effectively, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this clutch kit offers rigidity and consistency, making it suitable for both street and race applications.

Designed for 1980-1982 Toyota Corolla models, this clutch kit is a direct replacement for stock components, offering enhanced holding capacity and longevity. It is ideal for enthusiasts seeking improved performance in street, track, or off-road driving scenarios. The kit is a bolt-on upgrade that requires no additional modifications for installation. It includes all necessary components for a complete clutch replacement, ensuring optimal engagement and pedal feel. Suitable for vehicles with similar specifications, this clutch kit provides a robust solution for high-performance driving needs.

Overview

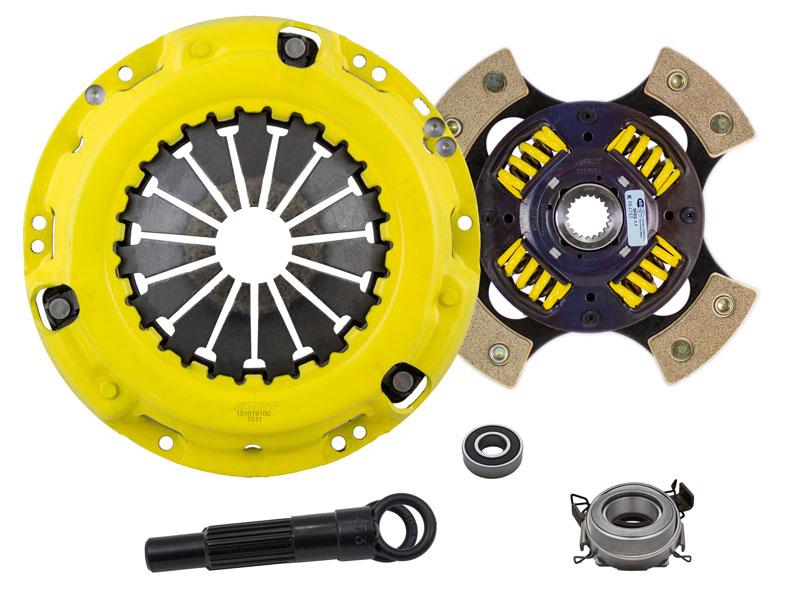

ACT HD/Race Sprung 4 Pad Kit

TL4-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.5
  • Torque Capacity (ft/lbs.): 355
  • Torque Capacity Over OE: 0.89
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1980-1982 Toyota Corolla

What's In The Box?

  • Clutch Friction Disc (4224203)
  • Clutch Alignment Tool (AT12)
  • Clutch Pilot Bearing (PB1001)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T011)

References

Warranty

  • Manufacturer 1 Year Warranty
