• ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Corolla (80-87) (TL1-HDG4)
1 1

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Corolla (80-87) (TL1-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Corolla (80-87) (TL1-HDG4)

TL1-HDG4

In stock

$586.00 USD
$586.00 USD $586.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for Toyota Corolla (1980-1987) is a high-performance clutch assembly designed for demanding driving conditions. This kit includes ACT's most popular Heavy Duty pressure plate, featuring an exclusive diaphragm design that increases clamp load, reduces deflection, and enhances overall clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The 4-pad spring-centered race disc is engineered to properly damp torsional vibrations, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this clutch kit delivers increased rigidity and stability, making it suitable for aggressive street or race applications.

Designed for 1980-1987 Toyota Corolla models, this clutch kit is compatible with vehicles equipped with suitable engine configurations and drivetrain setups. It serves as a robust upgrade or replacement for stock clutches, offering improved clamp force and heat resistance for high-performance driving. The kit is a bolt-on installation, ensuring straightforward replacement without modifications. Ideal for track use, spirited street driving, or applications requiring enhanced durability, this clutch kit provides a reliable solution for drivers seeking increased performance and longevity from their clutch system. The package includes all necessary components for installation, ensuring a complete upgrade.

Overview

ACT HD/Race Sprung 4 Pad Kit

TL1-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.7
  • Torque Capacity (ft/lbs.): 265
  • Torque Capacity Over OE: 0.86
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1980-1987 Toyota Corolla

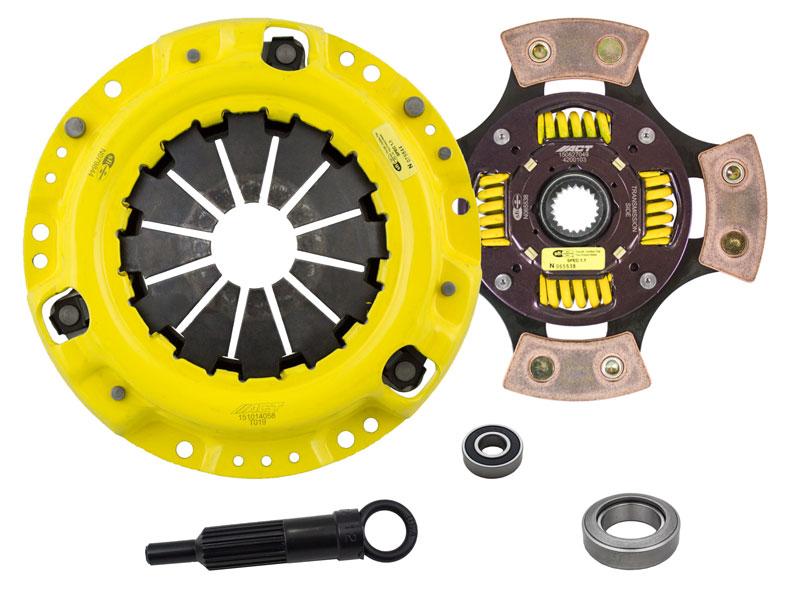

What's In The Box?

  • Clutch Friction Disc (4200103)
  • Clutch Alignment Tool (AT12)
  • Clutch Pilot Bearing (PB1001)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T019)

References

Warranty

  • Manufacturer 1 Year Warranty
