ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Acura Integra (86-89) (AI1-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Acura Integra (86-89) (AI1-HDG4)

AI1-HDG4

Out of stock

$567.00 USD
$567.00 USD $567.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Acura Integra (1986-1989) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a rigorous four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 4-pad spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this clutch kit delivers increased rigidity and stability, making it suitable for spirited street driving or track use.

Designed specifically for 1986-1989 Acura Integra models, this clutch kit is compatible with various engine configurations within that range. It serves as a direct replacement or upgrade for stock clutch components, offering enhanced clamping force and durability under high-stress conditions. The assembly is a bolt-on installation, requiring no additional modifications. Ideal for enthusiasts seeking improved performance, the kit is suitable for street, track, or racing applications where maximum clutch life and consistent engagement are critical. The package provides all necessary components for a complete upgrade, ensuring a straightforward installation process.

Overview

ACT HD/Race Sprung 4 Pad Kit

AI1-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.1
  • Torque Capacity (ft/lbs.): 270
  • Torque Capacity Over OE: 0.76
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1986-1989 Acura Integra

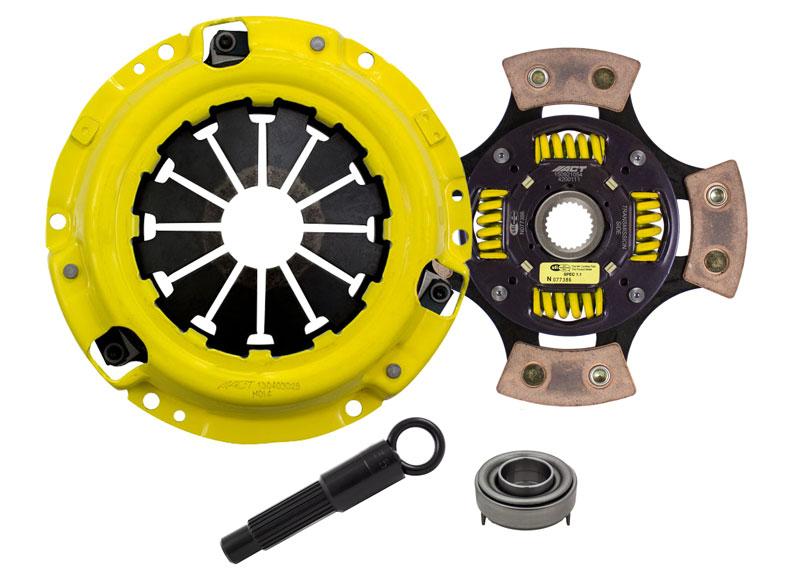

What's In The Box?

  • Clutch Friction Disc (4200111)
  • Clutch Alignment Tool (AT55)
  • Clutch Pressure Plate (H014)
  • Clutch Release Bearing (RB370)

References

Warranty

  • Manufacturer 1 Year Warranty
