ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Mazda RX-7 (87-91) (Z65-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Mazda RX-7 (87-91) (Z65-HDG4)

Z65-HDG4

Out of stock

$519.00 USD
$641.00 USD $519.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Mazda RX-7 (87-91) is a high-performance clutch assembly designed to handle increased power and demanding driving conditions. This kit includes ACT's most popular Heavy Duty pressure plate, featuring an exclusive diaphragm design that enhances clamp load, reduces deflection, and extends clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under high-stress conditions. The clutch disc incorporates a four-pad spring-centered race design, which effectively dampens torsional vibrations and provides smooth engagement. Constructed with precision cover stampings, this assembly offers rigidity and reliability for spirited driving and racing applications.

Designed specifically for 1987 to 1991 Mazda RX-7 models, this clutch kit is a direct replacement upgrade for stock components. It is suitable for street use, track days, and racing scenarios where increased clamping force and durability are essential. The kit is engineered for easy bolt-on installation, ensuring compatibility with the factory flywheel and transmission setup. This assembly is ideal for enthusiasts seeking improved performance and longevity in high-performance driving environments. The kit includes the pressure plate, clutch disc, and necessary hardware for a complete upgrade.

Overview

ACT HD/Race Sprung 4 Pad Kit

Z65-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes
  • Part Fitment Requirement: Flywheel requires counterweight (not included).
  • Product Weight (lbs.): 15.7
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 0.72
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty

Applications

  • 1987-1991 Mazda RX-7

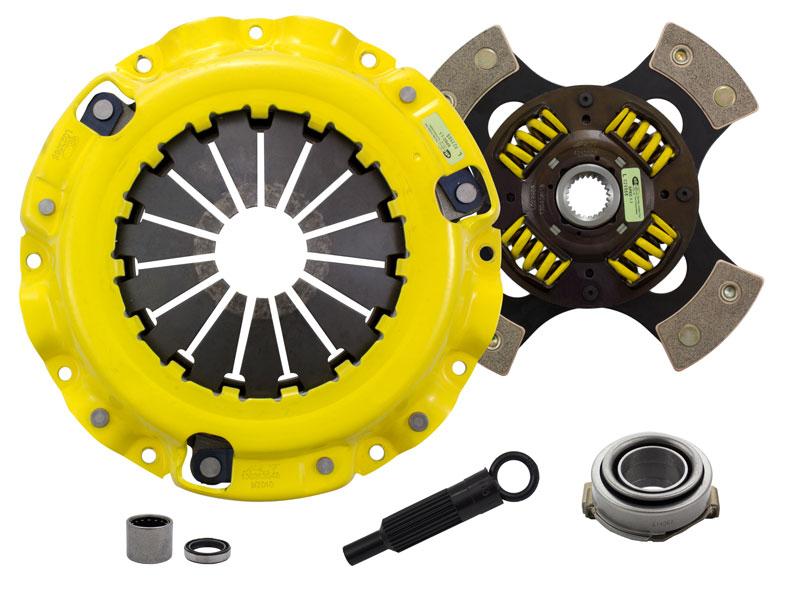

What's In The Box?

  • Clutch Friction Disc (4240208)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010)
  • Clutch Pilot Bearing (PB1013)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
