ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Honda Civic (88) (HC7-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Honda Civic (88) (HC7-HDG4)

HC7-HDG4

Out of stock

$490.00 USD
$605.00 USD $490.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for Honda Civic (88) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, utilizing an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 4-pad spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this clutch assembly offers enhanced rigidity and stability, making it suitable for aggressive street and race applications.

Designed for the 1988 Honda Civic (HC7 chassis), this clutch kit is an ideal upgrade for high-performance street, track, or racing use. It is a direct replacement for stock components, ensuring straightforward installation. The kit is compatible with various engine configurations within the model year and is engineered to withstand increased torque loads. Whether for daily driving or competitive racing, this clutch kit delivers improved clamp force, durability, and consistent engagement. It includes all necessary components for installation, providing a comprehensive solution for enthusiasts seeking enhanced clutch performance and longevity.

Overview

ACT HD/Race Sprung 4 Pad Kit

HC7-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 10.5
  • Torque Capacity (ft/lbs.): 300
  • Torque Capacity Over OE: 0.96
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1988-1988 Honda Civic

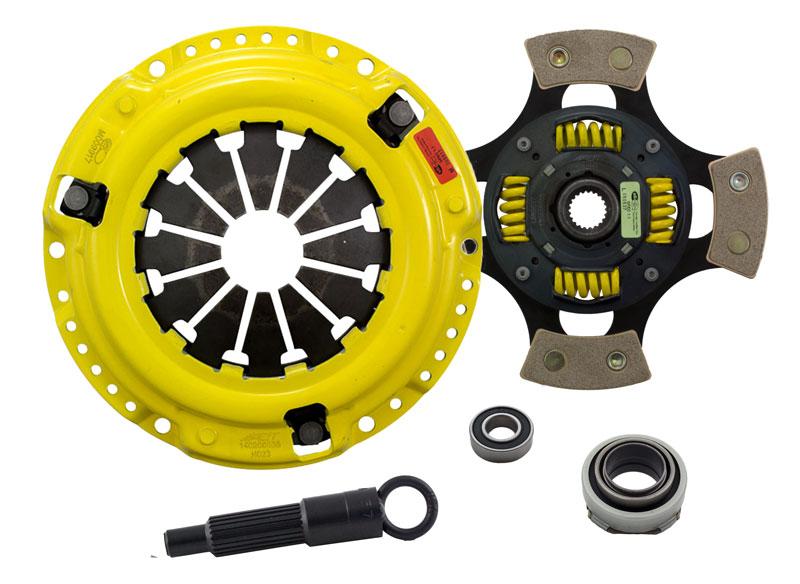

What's In The Box?

  • Clutch Alignment Tool (AT57)
  • Clutch Pressure Plate (H023)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB428)
  • Clutch Friction Disc (4212111)

References

Warranty

  • Manufacturer 1 Year Warranty
