ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Honda Civic (88) (HW2-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Honda Civic (88) (HW2-HDG4)

HW2-HDG4

Out of stock

$585.00 USD
$585.00 USD $585.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for Honda Civic (88) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under stress. The kit includes a 4-pad spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this clutch assembly offers enhanced rigidity and stability, making it suitable for racing or high-performance street applications.

This clutch kit is specifically designed for Honda Civic models from 1988, offering a direct replacement for stock components. It is ideal for track use, aggressive street driving, or any scenario requiring increased clamping force and durability. The assembly installs as a bolt-on upgrade, requiring no modifications for proper fitment. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatible with vehicles equipped with a compatible engine and chassis, this clutch provides improved performance, longevity, and consistent engagement for high-stress driving environments.

Overview

ACT HD/Race Sprung 4 Pad Kit

HW2-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Part Fitment Requirement: Must be used with factory flywheel.
  • Product Weight (lbs.): 10.2
  • Torque Capacity (ft/lbs.): 270
  • Torque Capacity Over OE: 0.76
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1988-1988 Honda Civic

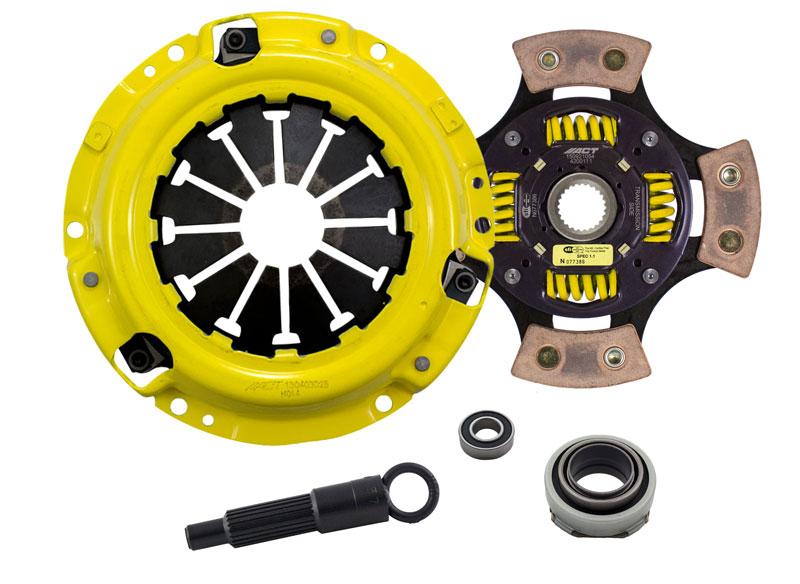

What's In The Box?

  • Clutch Friction Disc (4200111)
  • Clutch Alignment Tool (AT57)
  • Clutch Pressure Plate (H014)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB428)

References

Warranty

  • Manufacturer 1 Year Warranty
