ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Van (88-89) (TV1-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Van (88-89) (TV1-HDG4)

TV1-HDG4

In stock

$492.00 USD
$607.00 USD $492.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for Toyota Vans (1988-1989) is a high-performance clutch assembly designed to enhance durability and torque capacity. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure superior performance and reliability. Precision cover stampings provide added rigidity and consistency, while the 4-pad spring-centered race disc effectively dampens torsional vibrations, resulting in smoother engagement and improved drivability. Built with quality materials, this clutch kit is engineered for demanding applications and aggressive driving styles.

Designed specifically for 1988-1989 Toyota Vans, this clutch kit is a direct replacement for stock components, offering a reliable upgrade for street and track use. It is suitable for vehicles equipped with compatible engines and chassis configurations, providing increased clamping force and longevity under high-stress conditions. The kit includes all necessary components for installation, ensuring a straightforward bolt-on process. Ideal for enthusiasts seeking enhanced performance and durability, this clutch assembly delivers consistent power transfer and improved pedal feel, making it suitable for both daily driving and competitive racing scenarios.

Overview

ACT HD/Race Sprung 4 Pad Kit

TV1-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.8
  • Torque Capacity (ft/lbs.): 355
  • Torque Capacity Over OE: 0.89
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1988-1989 Toyota Van

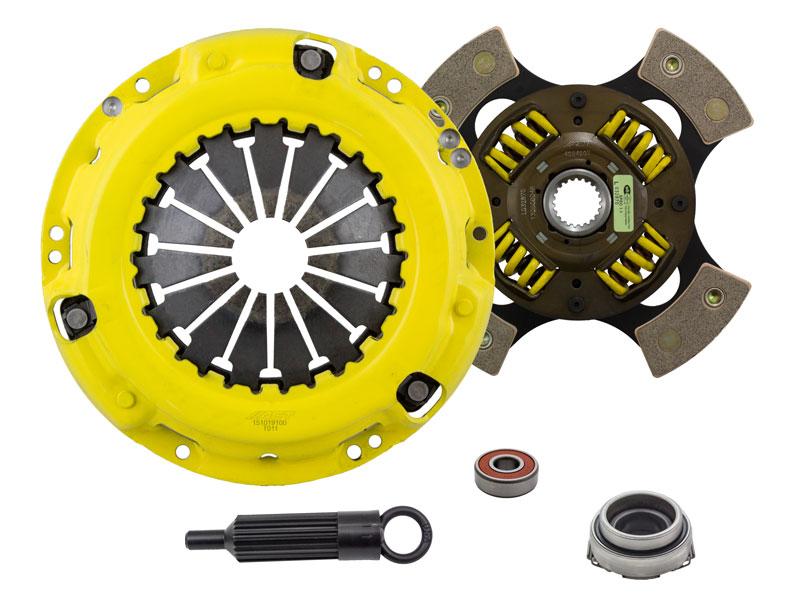

What's In The Box?

  • Clutch Friction Disc (4224207)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB444)
  • Clutch Pressure Plate (T011)

References

Warranty

  • Manufacturer 1 Year Warranty
