ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Celica (89-93) (TC4-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Celica (89-93) (TC4-HDG4)

TC4-HDG4

Out of stock

$580.00 USD
$716.00 USD $580.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Toyota Celica (1989-1993) is a high-performance clutch assembly designed to enhance durability and power transfer. This kit features ACT's most popular Heavy Duty pressure plate, utilizing an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure maximum performance and reliability. Precision cover stampings provide added rigidity and consistency, while the 4-pad spring-centered race disc effectively dampens torsional vibrations, resulting in smoother engagement and improved drivability under demanding conditions.

Specifically engineered for 1989-1993 Toyota Celica models, this clutch kit is suitable for street and track use, offering a robust upgrade over stock components. It is a direct bolt-on replacement that maintains compatibility with the vehicle’s existing drivetrain. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Designed to handle increased torque and heat, this clutch assembly is ideal for enthusiasts seeking enhanced performance, durability, and longevity in demanding driving environments.

Overview

ACT HD/Race Sprung 4 Pad Kit

TC4-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.5
  • Torque Capacity (ft/lbs.): 500
  • Torque Capacity Over OE: 0.69
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1989-1993 Toyota Celica

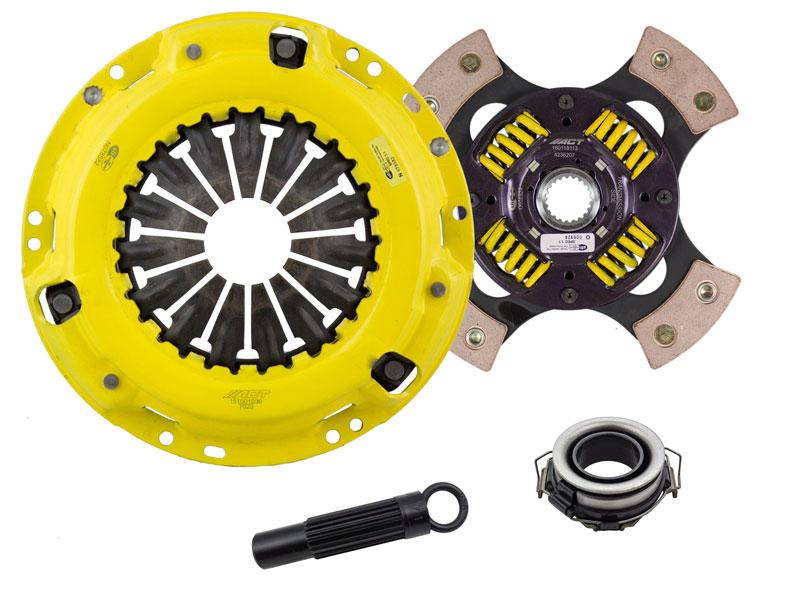

What's In The Box?

  • Clutch Friction Disc (4236207)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB446)
  • Clutch Pressure Plate (T023)

References

Warranty

  • Manufacturer 1 Year Warranty
