• ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Acura Integra (90-91) (AI2-HDG4)
1 1

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Acura Integra (90-91) (AI2-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Acura Integra (90-91) (AI2-HDG4)

AI2-HDG4

Out of stock

$527.00 USD
$651.00 USD $527.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Acura Integra (90-91) is a high-performance clutch assembly designed to handle increased power and demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which employs an exclusive diaphragm design to enhance clamp load, minimize deflection, and extend clutch lifespan. The pressure plate undergoes a rigorous four-stage heat-treating process, ensuring durability and consistent performance under extreme conditions. The inclusion of a 4-pad spring-centered race disc provides effective torsional vibration damping, contributing to smoother engagement and improved drivability. Constructed with precision cover stampings, this clutch kit offers rigidity and reliability for spirited driving and racing applications.

Designed specifically for 1990-1991 Acura Integra models, this clutch kit is a direct replacement upgrade for stock components. It is suitable for street, track, and performance driving, providing increased clamping force and durability for high-horsepower setups. The kit is engineered for easy bolt-on installation, ensuring compatibility with the factory flywheel and transmission. It includes all necessary components for a complete clutch replacement, making it ideal for enthusiasts seeking enhanced performance and longevity. This clutch kit is optimized for use in applications requiring robust engagement and reliable operation under demanding conditions.

Overview

ACT HD/Race Sprung 4 Pad Kit

AI2-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.5
  • Torque Capacity (ft/lbs.): 310
  • Torque Capacity Over OE: 0.68
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.7
  • Clutch Disc Diameter (mm): 220
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1990-1991 Acura Integra

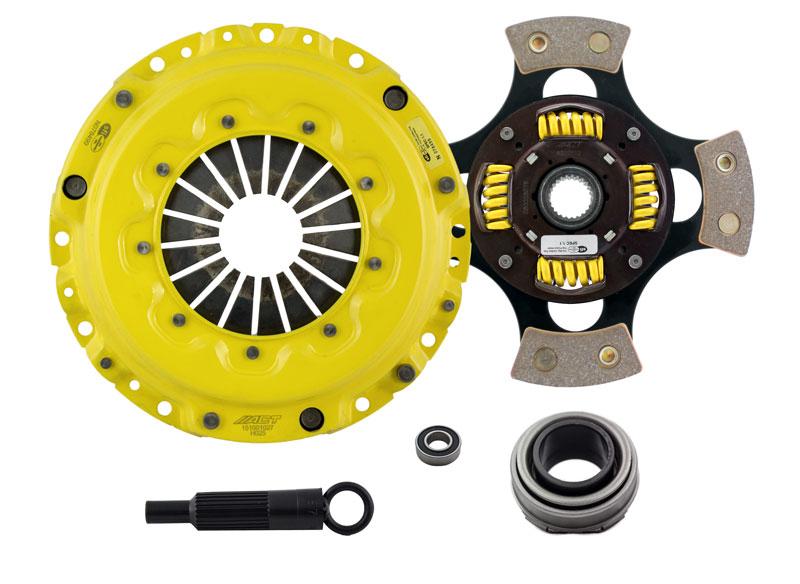

What's In The Box?

  • Clutch Alignment Tool (AT87)
  • Clutch Pressure Plate (H025)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB837)
  • Clutch Friction Disc (4220112)

References

Warranty

  • Manufacturer 1 Year Warranty
