ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Nissan Stanza (90-92) (NA1-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Nissan Stanza (90-92) (NA1-HDG4)

NA1-HDG4

Out of stock

$481.00 USD
$594.00 USD $481.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for Nissan Stanza (90-92) is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under high-stress applications. The clutch disc incorporates a 4-pad spring-centered race design that effectively dampens torsional vibrations, providing smooth engagement and enhanced control. Constructed with precision cover stampings, this clutch assembly offers rigidity and reliability, making it suitable for both street and race use.

Designed specifically for 1990-1992 Nissan Stanza models, this clutch kit is a direct replacement upgrade for stock components. It is ideal for enthusiasts seeking increased durability and performance in high-torque or track environments. The kit is engineered for bolt-on installation, ensuring compatibility with the original flywheel and transmission setup. Suitable for street, track, or aggressive driving, this clutch kit delivers improved power transfer and longevity. The package includes the pressure plate, clutch disc, and necessary hardware, providing a comprehensive solution for restoring or upgrading clutch performance on compatible Nissan Stanza vehicles.

Overview

ACT HD/Race Sprung 4 Pad Kit

NA1-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13.8
  • Torque Capacity (ft/lbs.): 350
  • Torque Capacity Over OE: 0.97
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1990-1992 Nissan Stanza

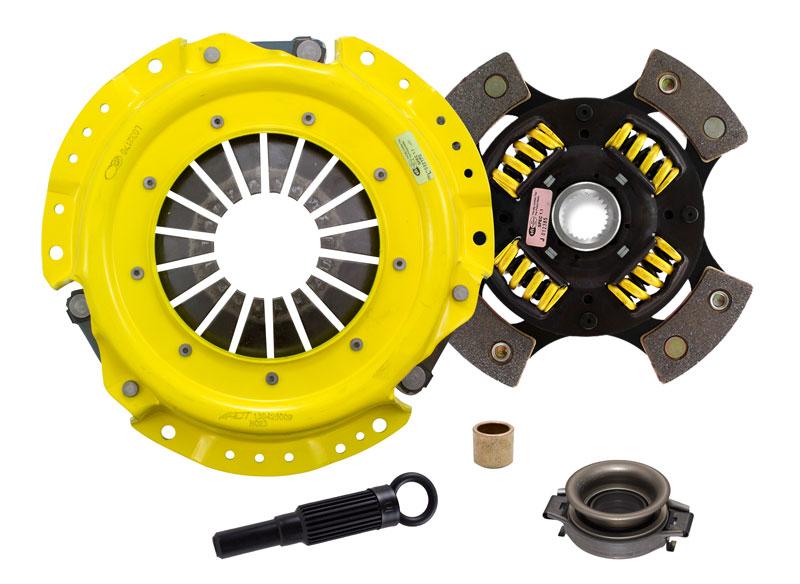

What's In The Box?

  • Clutch Friction Disc (4224106)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N023)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB816)

References

Warranty

  • Manufacturer 1 Year Warranty
