• ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Corolla (91-92) (TL3-HDG4)
1 1

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Corolla (91-92) (TL3-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Corolla (91-92) (TL3-HDG4)

TL3-HDG4

Out of stock

$609.00 USD
$609.00 USD $609.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Toyota Corolla (91-92) is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The included 4-pad spring-centered race disc is engineered to damp torsional vibrations effectively, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this clutch kit offers enhanced rigidity and stability, making it suitable for spirited driving and race applications.

Designed specifically for 1991–1992 Toyota Corolla models, this clutch kit is a direct replacement for stock components, offering increased clamping force and durability. It is ideal for street performance, track use, or any application requiring a robust clutch solution. The kit is a bolt-on upgrade that does not require modifications, ensuring straightforward installation. Compatible with the stock flywheel, it provides a reliable upgrade for drivers seeking improved clutch performance and longevity. This comprehensive kit includes the pressure plate and race disc, delivering a complete solution for high-stress driving environments.

Overview

ACT HD/Race Sprung 4 Pad Kit

TL3-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.6
  • Torque Capacity (ft/lbs.): 265
  • Torque Capacity Over OE: 0.86
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1991-1992 Toyota Corolla

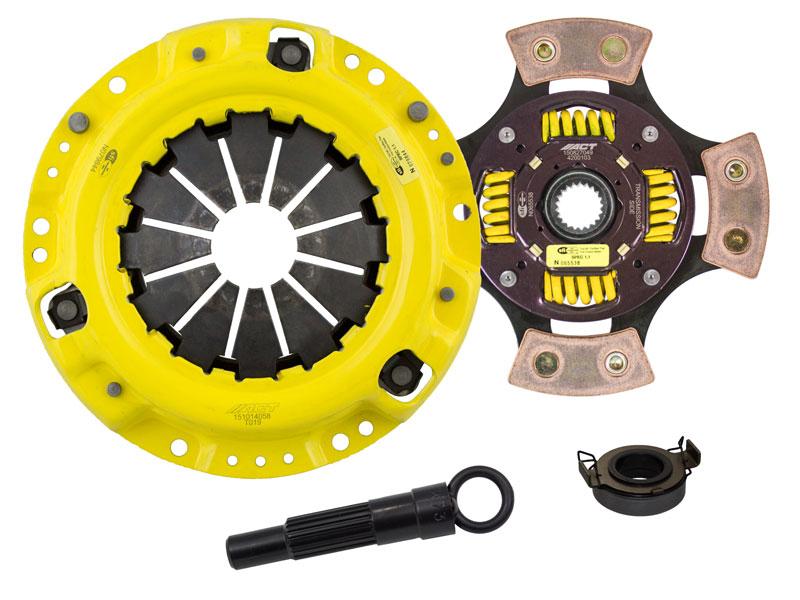

What's In The Box?

  • Clutch Friction Disc (4200103)
  • Clutch Alignment Tool (ATK73)
  • Clutch Release Bearing (RB840)
  • Clutch Pressure Plate (T019)

References

Warranty

  • Manufacturer 1 Year Warranty
