The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Acura Integra (92-93) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, utilizing an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 4-pad spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this clutch assembly offers enhanced rigidity and stability, making it suitable for aggressive street and race applications.

This clutch kit is specifically engineered for 1992-1993 Acura Integra models, compatible with various engine configurations within this chassis. It is a direct replacement upgrade for stock clutch components, ideal for high-performance street driving, track use, or racing scenarios requiring increased clamping force and durability. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Designed to withstand high torque loads, this clutch assembly delivers consistent performance under demanding conditions, making it a reliable choice for enthusiasts seeking improved clutch engagement and longevity.

Overview

ACT HD/Race Sprung 4 Pad Kit

AI3-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.5
  • Torque Capacity (ft/lbs.): 310
  • Torque Capacity Over OE: 0.68
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.7
  • Clutch Disc Diameter (mm): 220
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1.03125
  • Alignment Tool Included: Yes

Applications

  • 1992-1993 Acura Integra

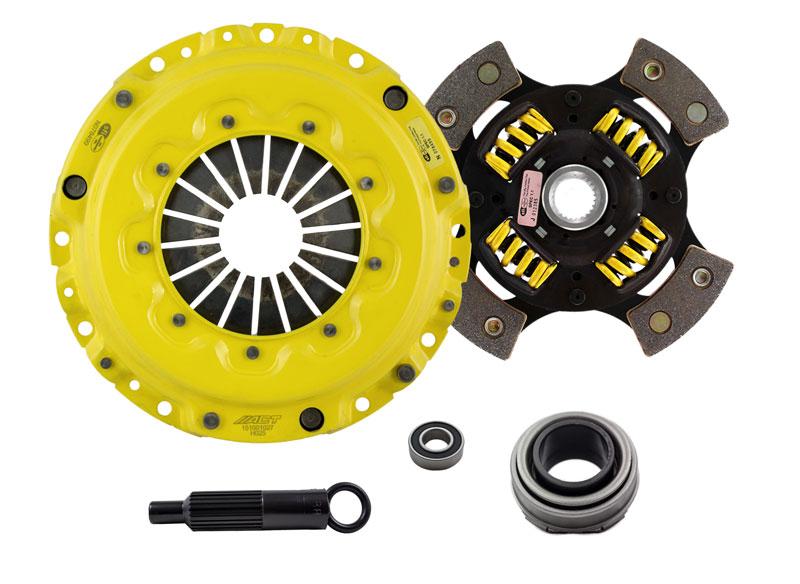

What's In The Box?

  • Clutch Friction Disc (4220110)
  • Clutch Alignment Tool (AT88)
  • Clutch Pressure Plate (H025)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB837)

References

Warranty

  • Manufacturer 1 Year Warranty
