ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Scion xD (08-14) (SC1-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Scion xD (08-14) (SC1-HDG4)

SC1-HDG4

In stock

$527.00 USD
$650.00 USD $527.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Scion xD (2008-2014) is a high-performance clutch upgrade designed for enhanced durability and consistent engagement. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure maximum performance and reliability. The inclusion of a precision cover stamping provides added rigidity and consistency, while the 4-pad spring-centered race disc effectively dampens torsional vibrations, resulting in smoother power transfer and improved drivability under demanding conditions.

This clutch kit is specifically engineered for the 2008-2014 Scion xD models, offering a direct replacement for stock components. It is suitable for street, track, or spirited driving, where increased clamping force and durability are essential. The kit is designed for bolt-on installation, ensuring a straightforward upgrade process. It includes all necessary components for installation, providing a comprehensive solution for enthusiasts seeking reliable performance and longevity from their clutch system. This setup is ideal for drivers looking to improve their vehicle’s handling of increased power or aggressive driving styles.

Overview

ACT HD/Race Sprung 4 Pad Kit

SC1-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 11.9
  • Torque Capacity (ft/lbs.): 305
  • Torque Capacity Over OE: 0.69
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375

Applications

  • 2008-2014 Scion xD

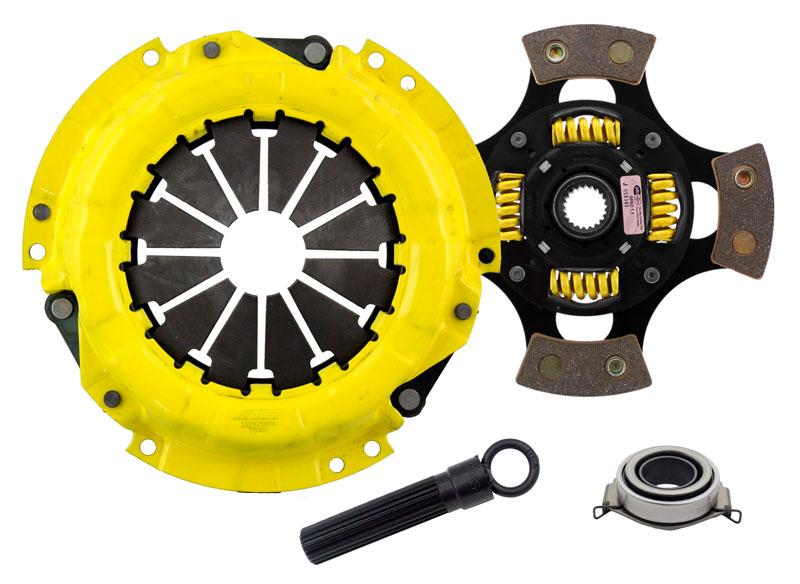

What's In The Box?

  • Clutch Release Bearing (RB124)
  • Clutch Pressure Plate (T030)
  • Clutch Friction Disc (4212103)

References

Warranty

  • Manufacturer 1 Year Warranty
