ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Mazda 2 (11-14) (ZM9-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Mazda 2 (11-14) (ZM9-HDG4)

ZM9-HDG4

In stock

$620.00 USD
$620.00 USD $620.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for Mazda 2 (2011-2014) is a high-performance clutch system designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 4-pad spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and enhanced control. Constructed with precision cover stampings, this clutch assembly offers rigidity and reliability for spirited driving and racing applications.

Designed for 2011 to 2014 Mazda 2 models, this clutch kit is a direct replacement upgrade suitable for street and track use. It is ideal for drivers seeking increased clamping force and durability under high-stress conditions. The kit is compatible with stock or modified engines and is engineered for easy bolt-on installation. The package includes all necessary components for a complete clutch replacement, ensuring optimal performance and longevity. Suitable for enthusiasts and racers alike, this clutch kit delivers improved power transfer and consistent engagement for demanding driving environments.

Overview

ACT HD/Race Sprung 4 Pad Kit

ZM9-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.9
  • Torque Capacity (ft/lbs.): 250
  • Torque Capacity Over OE: 0.86
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 2011-2014 Mazda 2

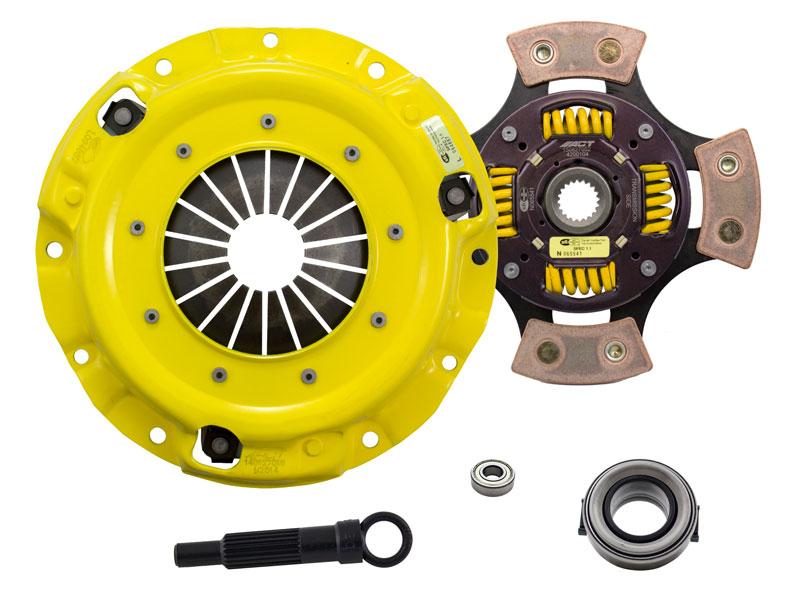

What's In The Box?

  • Clutch Friction Disc (4200104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (MZ014)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB453)

References

Warranty

  • Manufacturer 1 Year Warranty
