ACT HD/Race Sprung 4 Pad Kit | Multiple Fitments (DN2-HDG4)

ACT HD/Race Sprung 4 Pad Kit

DN2-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

• Part Fitment Requirement: Conversion Kit - Replaces modular clutch. Must use ACT flywheel (included in kit).
• Product Weight (lbs.): 20.9
• Torque Capacity (ft/lbs.): 395
• Torque Capacity Over OE: 1.12
• Flywheel Included: Yes
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.8
• Clutch Disc Diameter (mm): 224
• Disc Material: Ceramic
• Input Spline Quantity: 17
• Input Shaft Diameter (in.): 0.9375
• Alignment Tool Included: Yes

Applications

• 1995-1999 Mitsubishi Eclipse GS & RS
• 2001-2006 Chrysler PT Cruiser (GT not included)
• 1996-2005 Dodge Neon (SRT-4 not included)
• 1995-1999 Chrysler Sebring LX
• 1995-1998 Eagle Talon Base & ESi
• 1995-1999 Dodge Avenger

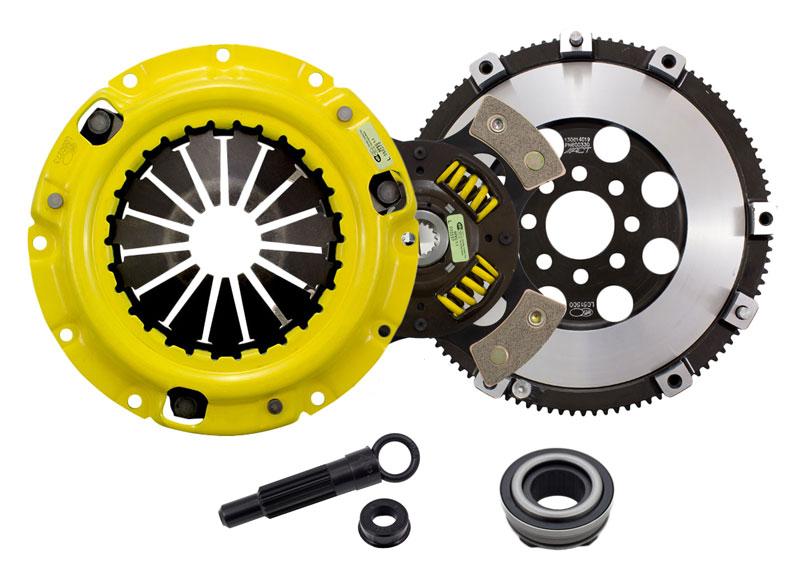

What's In The Box?

• Clutch Friction Disc (4224226)
• Clutch Flywheel (600330)
• Clutch Alignment Tool (ATCP2)
• Clutch Pressure Plate (D016)
• Clutch Release Bearing (RB408)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
