ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Multiple Fitments (HA1-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Multiple Fitments (HA1-HDG4)

HA1-HDG4

Out of stock

$459.00 USD
$567.00 USD $459.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit (HA1-HDG4) is a high-performance clutch assembly designed for demanding racing and heavy-duty applications. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The kit includes a 4-pad spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this clutch assembly offers enhanced rigidity and stability, making it suitable for high-stress driving environments.

This clutch kit is compatible with a variety of vehicle makes and models, suitable for applications requiring increased clamping force and durability. It is ideal for racing, track days, or heavy-duty street use, where performance and longevity are critical. The kit is designed as a direct replacement for stock components, ensuring straightforward installation. While specific vehicle fitment details are not listed, ACT's heavy-duty clutch kits generally fit a broad range of models with compatible specifications. This assembly is perfect for enthusiasts seeking a reliable, high-performance upgrade to handle increased power and demanding driving conditions.

Overview

ACT HD/Race Sprung 4 Pad Kit

HA1-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.1
  • Torque Capacity (ft/lbs.): 270
  • Torque Capacity Over OE: 0.76
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1983-1987 Honda Prelude
  • 1983-1985 Honda Accord

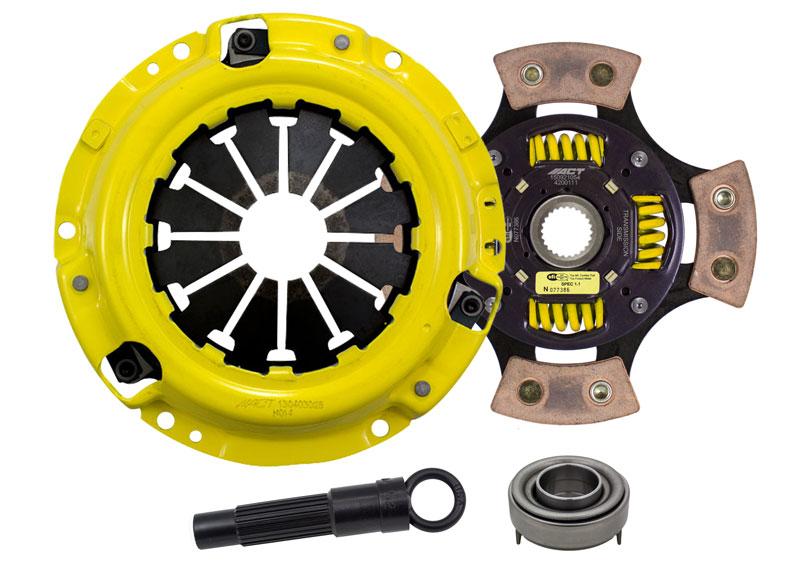

What's In The Box?

  • Clutch Friction Disc (4200111)
  • Clutch Alignment Tool (AT52)
  • Clutch Pressure Plate (H014)
  • Clutch Release Bearing (RB370)

References

Warranty

  • Manufacturer 1 Year Warranty
