• ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Multiple Fitments (HC3-HDG4)
1 1

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Multiple Fitments (HC3-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Multiple Fitments (HC3-HDG4)

HC3-HDG4

In stock

$573.00 USD
$573.00 USD $573.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit (HC3-HDG4) is a high-performance clutch assembly designed for demanding racing and heavy-duty applications. This kit features ACT’s most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under extreme conditions. The inclusion of a 4-pad spring-centered race disc provides optimal torsional vibration damping, enhancing drivability and reducing stress on drivetrain components. Built with precision cover stampings for rigidity, this clutch kit delivers reliable engagement and high torque capacity for competitive racing or heavy-duty use.

Designed for multiple fitments, this clutch kit is suitable for various vehicle models requiring a robust upgrade. It is ideal for street, track, or off-road applications where increased clamping force and durability are essential. The kit is a direct bolt-on replacement for compatible vehicles, simplifying installation without the need for additional modifications. The package includes all necessary components for a complete upgrade, ensuring a secure and reliable clutch system. Suitable for vehicles with high horsepower or torque demands, this clutch kit provides the performance and longevity needed for aggressive driving and racing environments.

Overview

ACT HD/Race Sprung 4 Pad Kit

HC3-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Part Fitment Requirement: Must be used with factory flywheel.
  • Product Weight (lbs.): 10.2
  • Torque Capacity (ft/lbs.): 270
  • Torque Capacity Over OE: 0.76
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1989-1989 Honda Civic
  • 1989-1989 Honda CRX

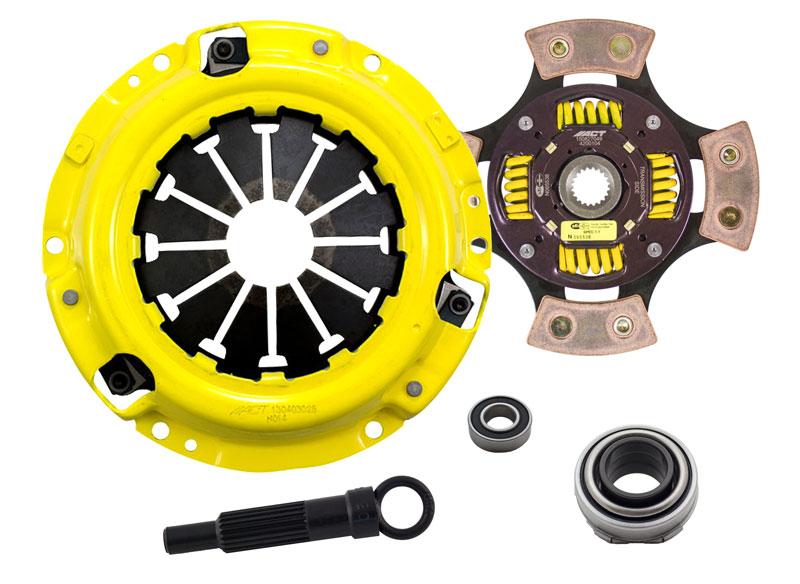

What's In The Box?

  • Clutch Friction Disc (4200104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H014)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB427)

References

Warranty

  • Manufacturer 1 Year Warranty
