ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Multiple Fitments (HC4-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Multiple Fitments (HC4-HDG4)

HC4-HDG4

In stock

$484.00 USD
$598.00 USD $484.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit (HC4-HDG4) is a high-performance clutch assembly designed for demanding racing and heavy-duty applications. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The kit also includes a 4-pad spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and reliable power transfer. Built with precision cover stampings for rigidity, this clutch kit delivers enhanced grip and longevity for high-stress driving environments.

Designed for multiple fitments, this clutch kit is suitable for various vehicles requiring a robust upgrade for street, track, or racing use. It is compatible with vehicles that demand increased clamping force and durability, especially in high-performance or heavy-duty scenarios. The installation involves a direct bolt-on process, making it suitable for experienced enthusiasts and professional mechanics. The kit typically includes the pressure plate, clutch disc, and necessary hardware, ensuring a comprehensive upgrade. Ideal for racing, spirited driving, or heavy-duty applications, this clutch kit provides the reliability and performance needed to handle increased power and demanding driving conditions.

Overview

ACT HD/Race Sprung 4 Pad Kit

HC4-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.5
  • Torque Capacity (ft/lbs.): 300
  • Torque Capacity Over OE: 0.96
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1989-1991 Honda Civic
  • 1989-1991 Honda CRX

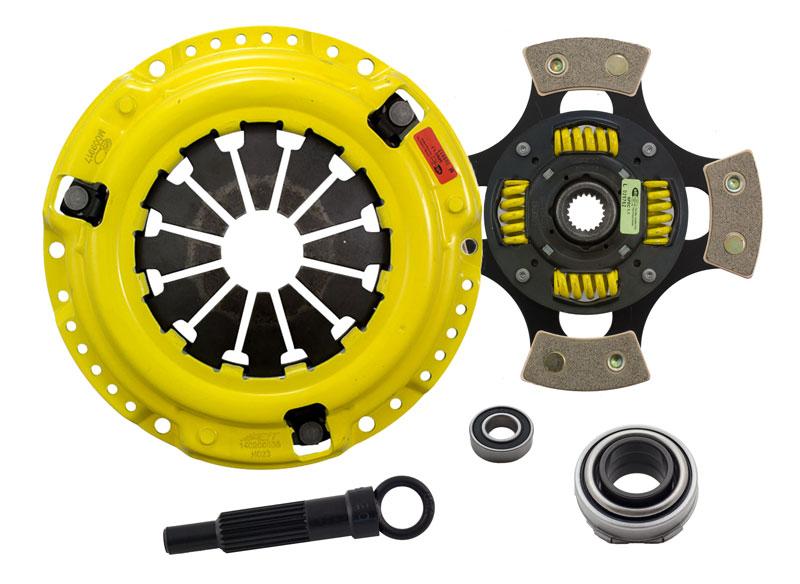

What's In The Box?

  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB427)
  • Clutch Friction Disc (4212104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H023)

References

Warranty

  • Manufacturer 1 Year Warranty
