ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Honda Civic (88) (HC6-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Honda Civic (88) (HC6-HDG4)

HC6-HDG4

Out of stock

$484.00 USD
$598.00 USD $484.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for Honda Civic (88) is a high-performance clutch assembly designed for demanding driving conditions. This kit includes ACT's most popular Heavy Duty pressure plate, featuring an exclusive diaphragm design that enhances clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under stress. The 4-pad spring-centered race disc is engineered to damp torsional vibrations effectively, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this clutch kit delivers increased rigidity and stability, making it suitable for racing and high-performance street applications.

Designed for the 1988 Honda Civic, this clutch kit is a direct replacement for stock components and is ideal for track use, spirited driving, or heavy-duty street performance. It is compatible with models equipped with a compatible engine and chassis configuration, offering a bolt-on installation that does not require modifications. The kit typically includes the pressure plate, clutch disc, and necessary hardware for installation. This clutch assembly is engineered to withstand high torque loads and aggressive driving, providing consistent engagement and long-lasting performance. Suitable for enthusiasts seeking a reliable upgrade for increased power handling and durability.

Overview

ACT HD/Race Sprung 4 Pad Kit

HC6-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 10.5
  • Torque Capacity (ft/lbs.): 300
  • Torque Capacity Over OE: 0.96
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1988-1988 Honda Civic
  • 1988-1988 Honda CRX

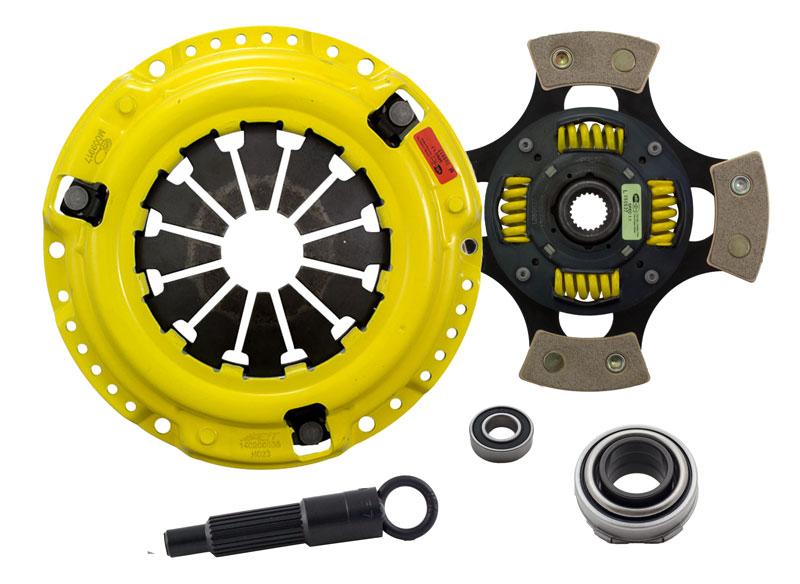

What's In The Box?

  • Clutch Friction Disc (4212111)
  • Clutch Alignment Tool (AT57)
  • Clutch Pressure Plate (H023)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB427)

References

Warranty

  • Manufacturer 1 Year Warranty
