• ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Hyundai Tiburon (03) (HY1-HDG4)
1 1

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Hyundai Tiburon (03) (HY1-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Hyundai Tiburon (03) (HY1-HDG4)

HY1-HDG4

Out of stock

$639.00 USD
$639.00 USD $639.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Hyundai Tiburon (03) is a high-performance clutch upgrade designed to enhance durability and power transfer. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a rigorous four-stage heat-treating process to ensure maximum performance and reliability. Precision cover stampings provide added rigidity and consistency, while the 4-pad spring-centered race disc effectively dampens torsional vibrations, resulting in smoother engagement and improved drivability under demanding conditions.

Designed specifically for the 2003 Hyundai Tiburon, this clutch kit is a direct replacement for stock components, suitable for street and track use. It is engineered to handle increased horsepower and torque, making it ideal for performance enthusiasts and racing applications. The kit includes all necessary components for installation, providing a comprehensive upgrade solution. Compatible with the stock flywheel and designed for easy bolt-on installation, this clutch kit delivers reliable performance and longevity for spirited driving and competitive racing scenarios.

Overview

ACT HD/Race Sprung 4 Pad Kit

HY1-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.1
  • Torque Capacity (ft/lbs.): 305
  • Torque Capacity Over OE: 0.77
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.4
  • Clutch Disc Diameter (mm): 214
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875

Applications

  • 1996-2006 Hyundai Elantra
  • 1997-2008 Hyundai Tiburon

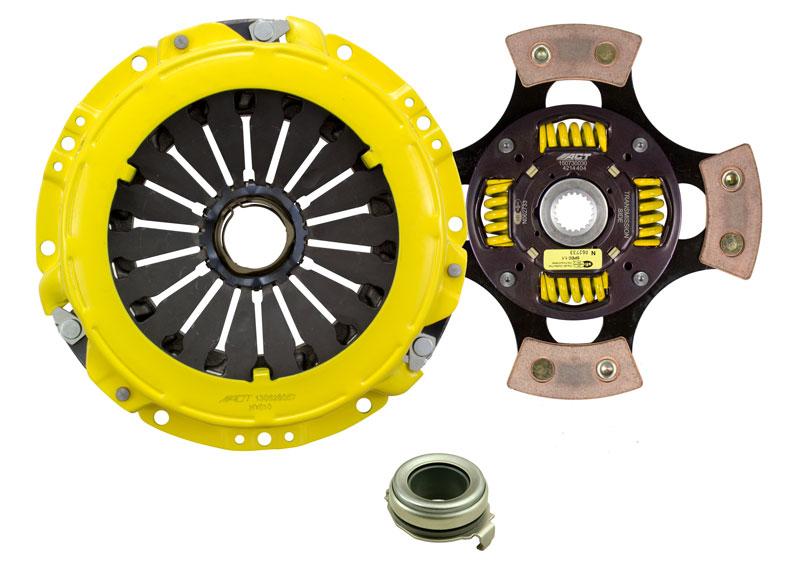

What's In The Box?

  • Clutch Friction Disc (4214404)
  • Clutch Pressure Plate (HY010)
  • Clutch Release Bearing (RB104)

References

Warranty

  • Manufacturer 1 Year Warranty
