• ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Chrysler Conquest (87) (MS1-HDG4)
1 1

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Chrysler Conquest (87) (MS1-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Chrysler Conquest (87) (MS1-HDG4)

MS1-HDG4

In stock

$541.00 USD
$668.00 USD $541.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Chrysler Conquest (87) is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, constructed with an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The 4-pad spring-centered race disc is engineered to damp torsional vibrations effectively, providing smooth engagement and reliable power transfer. Built with precision cover stampings, this clutch kit offers enhanced rigidity and stability, making it suitable for high-stress applications.

Designed specifically for the 1987 Chrysler Conquest, this clutch kit is a direct replacement for stock components and ideal for street and race use. It is engineered to handle increased horsepower and torque, making it suitable for performance upgrades and heavy-duty driving. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatible with models equipped with the original or similar engine configurations, this clutch kit delivers improved grip, durability, and consistent performance during aggressive driving or track days. It is a reliable choice for enthusiasts seeking maximum clutch performance and longevity.

Overview

ACT HD/Race Sprung 4 Pad Kit

MS1-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 15.7
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 0.72
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1987-1989 Chrysler Conquest
  • 1987-1989 Mitsubishi Starion

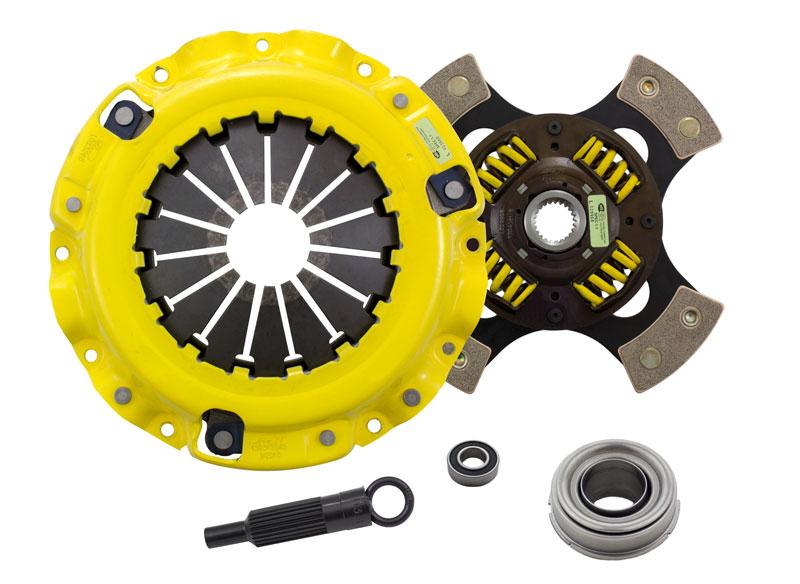

What's In The Box?

  • Clutch Friction Disc (4240208)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB422)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
