ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Infiniti I30 (1996) (NM1-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Infiniti I30 (1996) (NM1-HDG4)

NM1-HDG4

Out of stock

$564.00 USD
$696.00 USD $564.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Infiniti I30 (1996) is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process, ensuring durability and consistent performance under high-stress conditions. The inclusion of a 4-pad spring-centered race disc helps damp torsional vibrations, providing smoother engagement and enhanced control during aggressive driving. Constructed with precision cover stampings, this clutch kit offers rigidity and reliability, making it suitable for both street and race applications.

Designed specifically for the 1996 Infiniti I30, this clutch kit is a direct replacement upgrade for stock components. It is compatible with vehicles equipped with the original equipment or similar specifications, offering improved holding capacity and durability for spirited driving or track use. The kit is intended for use in high-performance scenarios where increased torque capacity and longevity are desired. Installation involves standard bolt-on procedures, and the kit includes all necessary components for a complete upgrade. Suitable for enthusiasts seeking a reliable, high-performance clutch solution, this ACT clutch kit enhances driving confidence and power transfer.

Overview

ACT HD/Race Sprung 4 Pad Kit

NM1-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 15.4
  • Torque Capacity (ft/lbs.): 475
  • Torque Capacity Over OE: 0.9
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1996-1999 Infiniti I30
  • 1985-2001 Nissan Maxima

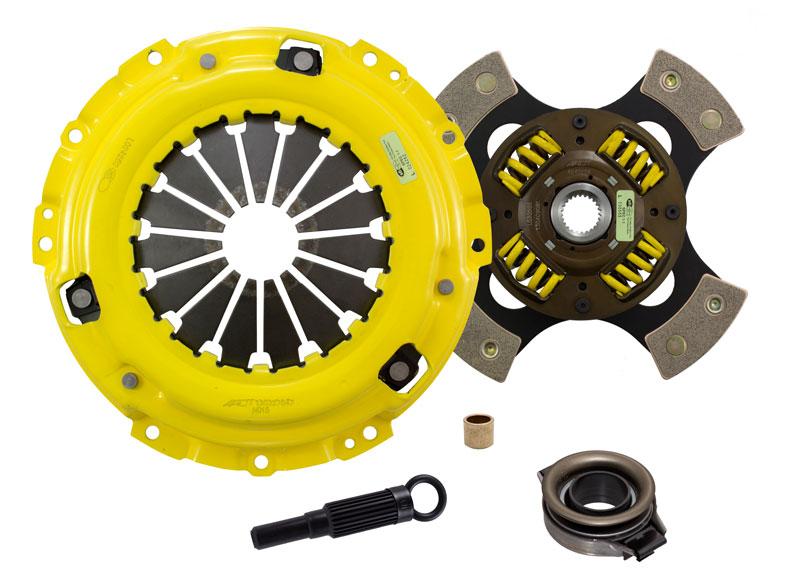

What's In The Box?

  • Clutch Friction Disc (4240206)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N015)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB809)

References

Warranty

  • Manufacturer 1 Year Warranty
