• ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Nissan 280ZX (1981) (NX2-HDG4)
1 1

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Nissan 280ZX (1981) (NX2-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Nissan 280ZX (1981) (NX2-HDG4)

NX2-HDG4

Out of stock

$669.00 USD
$669.00 USD $669.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Nissan 280ZX (1981) is a high-performance clutch assembly designed to handle increased power and demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to enhance clamp load, minimize deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 4-pad spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and reliable operation under high-stress scenarios. Constructed with precision cover stampings, this clutch assembly offers rigidity and consistency, making it suitable for racing and aggressive street driving.

This clutch kit is specifically designed for the Nissan 280ZX from 1981, fitting models equipped with compatible transmission and engine configurations. It is intended for use in high-performance applications, including racing and spirited driving, where durability and reliable power transfer are critical. The kit is a direct replacement for the stock clutch components, offering an upgrade to handle increased torque and horsepower. Installation involves standard bolt-on procedures, and the kit typically includes the pressure plate, clutch disc, and necessary hardware. Suitable for enthusiasts seeking a robust, race-ready clutch solution, this ACT kit ensures optimal performance and longevity for demanding driving environments.

Overview

ACT HD/Race Sprung 4 Pad Kit

NX2-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 18.5
  • Torque Capacity (ft/lbs.): 525
  • Torque Capacity Over OE: 0.86
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1986-1994 Nissan D21
  • 1984-1989 Nissan 300ZX
  • 1995-1998 Nissan Pickup
  • 1979-1983 Nissan 280ZX
  • 1987-1987 Nissan Pathfinder
  • 1987-1988 Nissan 200SX

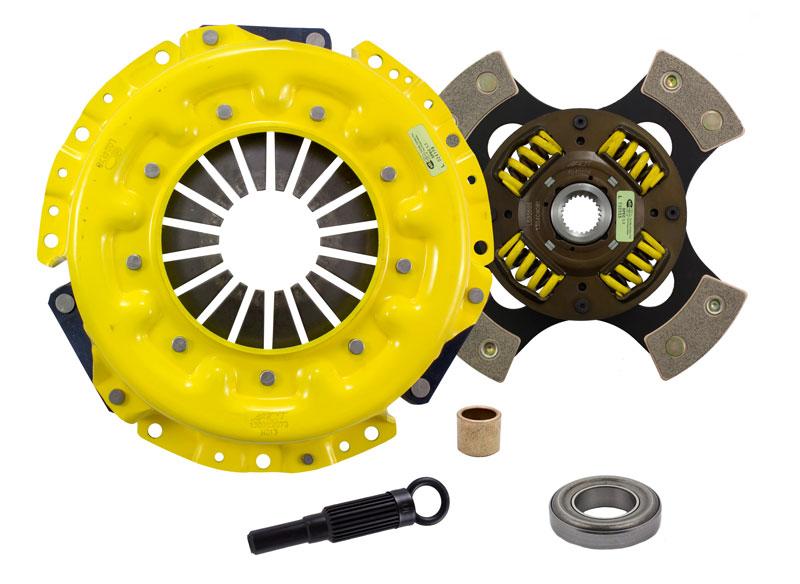

What's In The Box?

  • Clutch Friction Disc (4240206)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N013)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB016)

References

Warranty

  • Manufacturer 1 Year Warranty
