• ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Nissan 200SX (96) (NX9-HDG4)
1 1

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Nissan 200SX (96) (NX9-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Nissan 200SX (96) (NX9-HDG4)

NX9-HDG4

In stock

$471.00 USD
$582.00 USD $471.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Nissan 200SX (96) is a high-performance clutch assembly designed for demanding driving conditions. This kit includes ACT's most popular Heavy Duty pressure plate, featuring an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The 4-pad spring-centered race disc is engineered to damp torsional vibrations effectively, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this clutch kit offers enhanced rigidity and stability, making it suitable for aggressive street and track use.

Designed specifically for the 1996 Nissan 200SX, this clutch kit is compatible with models equipped with the NX9 chassis code. It serves as a direct replacement and performance upgrade for stock clutch components, ideal for drivers seeking increased holding capacity and durability during spirited driving or racing. The kit is suitable for street, track, and light competition applications, ensuring reliable operation under high torque conditions. Installation involves bolt-on replacement of the existing clutch assembly, with all necessary components included for a straightforward upgrade. This clutch kit provides a robust solution for enthusiasts demanding enhanced performance and longevity from their vehicle's clutch system.

Overview

ACT HD/Race Sprung 4 Pad Kit

NX9-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.8
  • Torque Capacity (ft/lbs.): 310
  • Torque Capacity Over OE: 0.77
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.4
  • Clutch Disc Diameter (mm): 214
  • Disc Material: Ceramic
  • Input Spline Quantity: 18
  • Input Shaft Diameter (in.): 0.8125
  • Alignment Tool Included: Yes

Applications

  • 1991-1993 Nissan NX
  • 1991-2002 Infiniti G20
  • 1991-2006 Nissan Sentra
  • 1995-1998 Nissan 200SX

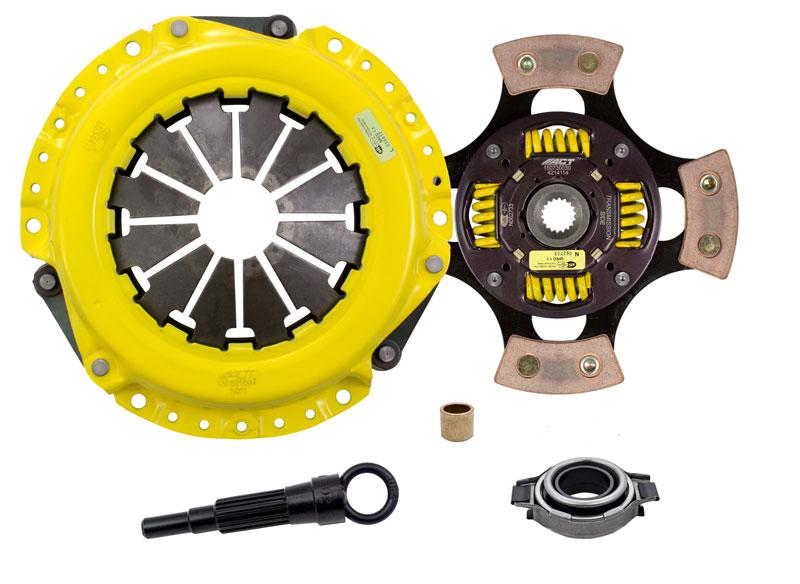

What's In The Box?

  • Clutch Friction Disc (4214114)
  • Clutch Alignment Tool (AT68)
  • Clutch Pressure Plate (N011)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB433)

References

Warranty

  • Manufacturer 1 Year Warranty
