ACT HD/Race Sprung 4 Pad Kit | Multiple Fitments (SB2-HDG4)

ACT HD/Race Sprung 4 Pad Kit

SB2-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

• Product Weight (lbs.): 14.5
• Torque Capacity (ft/lbs.): 399
• Torque Capacity Over OE: 0.82
• Pilot Bushing Included: Yes
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.8
• Clutch Disc Diameter (mm): 224
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter (in.): 1
• Alignment Tool Included: Yes

Applications

• 2003-2006 Subaru Baja
• 2016-2017 Subaru Crosstrek
• 1994-2019 Subaru Impreza
• 1998-2013 Subaru Forester
• 2000-2009 Subaru Outback
• 1990-2009 Subaru Legacy
• 2013-2015 Subaru XV Crosstrek
• 2005-2006 Saab 9-2X

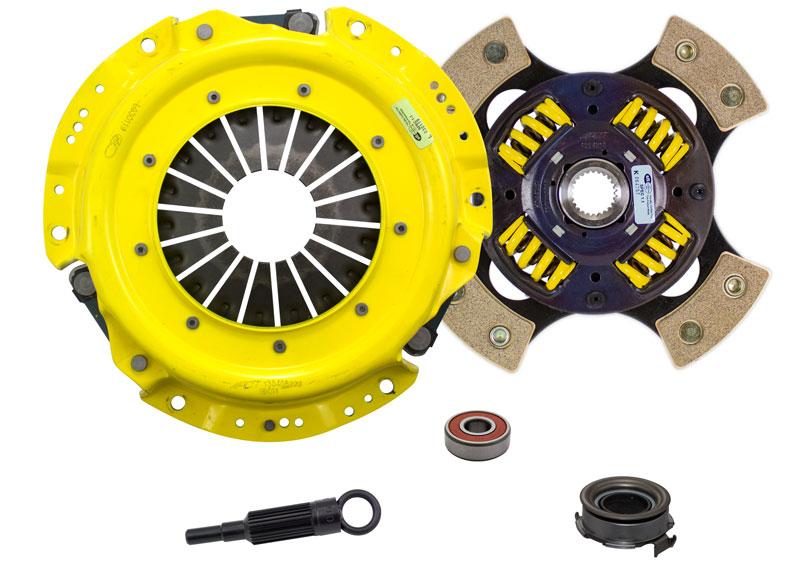

What's In The Box?

• Clutch Pilot Bearing (PB1004)
• Clutch Release Bearing (RB833)
• Clutch Pressure Plate (SB011)
• Clutch Friction Disc (4224218)
• Clutch Alignment Tool (AT90)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
