ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Geo Prizm (91) (TC1-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Geo Prizm (91) (TC1-HDG4)

TC1-HDG4

Out of stock

$518.00 USD
$639.00 USD $518.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit is a high-performance clutch assembly designed for demanding racing applications. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process, ensuring durability and consistent performance under extreme conditions. The kit includes a 4-pad spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this clutch assembly offers enhanced rigidity and stability, making it suitable for high-stress driving environments.

This clutch kit is compatible with the 1991 Geo Prizm equipped with the TC1 engine code. It is designed as a direct replacement for stock components, offering increased clamping force and durability for street or race use. The assembly is bolt-on and requires no additional modifications for installation. Ideal for performance enthusiasts seeking improved clutch performance and longevity, this kit is suitable for applications involving aggressive driving, track days, or racing. The package includes all necessary components for a complete upgrade, ensuring a straightforward installation process and reliable operation.

Overview

ACT HD/Race Sprung 4 Pad Kit

TC1-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.1
  • Torque Capacity (ft/lbs.): 305
  • Torque Capacity Over OE: 0.69
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1985-1989 Toyota MR2
  • 1990-1991 Geo Prizm
  • 1989-1991 Toyota Corolla
  • 1990-1991 Toyota Celica

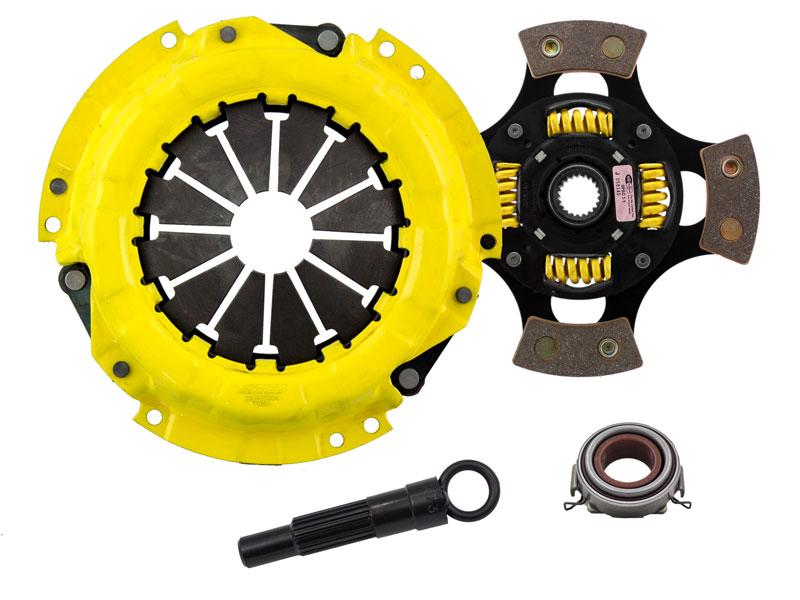

What's In The Box?

  • Clutch Friction Disc (4212103)
  • Clutch Alignment Tool (ATK73)
  • Clutch Release Bearing (RB371)
  • Clutch Pressure Plate (T030)

References

Warranty

  • Manufacturer 1 Year Warranty
