ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | 1991 Geo Prizm (TC2-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | 1991 Geo Prizm (TC2-HDG4)

TC2-HDG4

Out of stock

$528.00 USD
$652.00 USD $528.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the 1991 Geo Prizm is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under stress. The inclusion of a precision cover stamping enhances rigidity and stability, while the 4-pad spring-centered race disc effectively dampens torsional vibrations, providing smooth engagement and improved power transfer. Built for enthusiasts seeking reliability and high performance, this clutch kit offers a robust solution for street and race applications.

Designed specifically for the 1991 Geo Prizm, this clutch kit is compatible with models equipped with the appropriate engine configuration. It serves as a direct replacement for stock components, offering increased clamping force and durability for aggressive driving or track use. Installation involves standard bolt-on procedures, making it suitable for experienced DIY mechanics or professional installation. The kit includes the pressure plate, clutch disc, and necessary hardware, ensuring a complete upgrade. Ideal for street, track, or racing scenarios, this clutch kit enhances vehicle performance while maintaining smooth operation and long-lasting reliability.

Overview

ACT HD/Race Sprung 4 Pad Kit

TC2-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12
  • Torque Capacity (ft/lbs.): 305
  • Torque Capacity Over OE: 0.69
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1992-2013 Toyota Corolla
  • 1991-1997 Geo Prizm
  • 2003-2014 Toyota Matrix
  • 1991-2005 Toyota Celica
  • 2000-2005 Toyota MR2 Spyder
  • 2003-2008 Pontiac Vibe

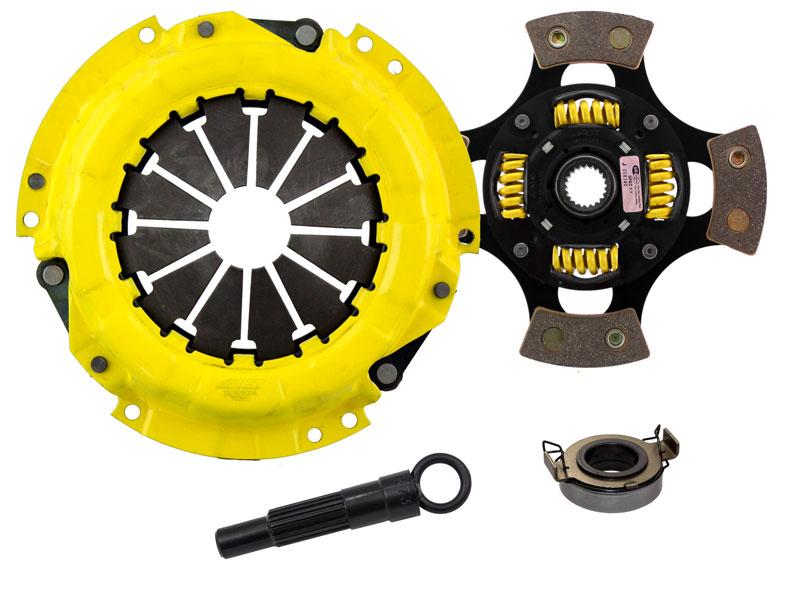

What's In The Box?

  • Clutch Friction Disc (4212103)
  • Clutch Alignment Tool (ATK73)
  • Clutch Release Bearing (RB840)
  • Clutch Pressure Plate (T030)

References

Warranty

  • Manufacturer 1 Year Warranty
