ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Camry (1988) (TC6-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Camry (1988) (TC6-HDG4)

TC6-HDG4

Out of stock

$695.00 USD
$695.00 USD $695.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Toyota Camry (1988) is a high-performance clutch upgrade designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under stress. The kit includes a 4-pad spring-centered race disc that effectively dampens torsional vibrations, providing smoother engagement and enhanced drivability. Constructed with precision cover stampings, this clutch assembly delivers increased rigidity and reliability, making it suitable for racing or heavy-duty applications.

Designed specifically for the 1988 Toyota Camry, this clutch kit is a direct replacement for stock components, offering improved holding capacity and longevity. It is ideal for street or track use where increased performance and durability are required. The kit is a bolt-on upgrade that does not require modifications for installation, making it suitable for enthusiasts seeking a straightforward upgrade. The components included are engineered to withstand high torque loads and aggressive driving styles, ensuring consistent performance. This clutch kit is perfect for drivers seeking a reliable, high-performance solution for spirited driving or racing scenarios.

Overview

ACT HD/Race Sprung 4 Pad Kit

TC6-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.6
  • Torque Capacity (ft/lbs.): 400
  • Torque Capacity Over OE: 0.65
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 2002-2006 Toyota Solara
  • 2005-2006 Scion tC
  • 1988-2006 Toyota Camry

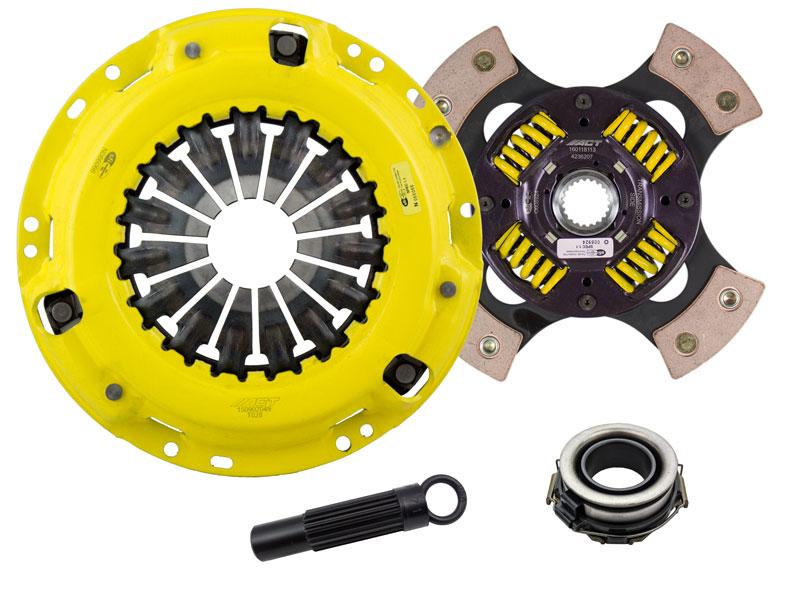

What's In The Box?

  • Clutch Friction Disc (4236207)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB219)
  • Clutch Pressure Plate (T028)

References

Warranty

  • Manufacturer 1 Year Warranty
