ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Scion tC (06) (TC7-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Scion tC (06) (TC7-HDG4)

TC7-HDG4

Out of stock

$687.00 USD
$687.00 USD $687.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Scion tC (06) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under stress. The kit includes a 4-pad spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings, this clutch assembly offers rigidity and stability, making it suitable for spirited driving and track use.

This clutch kit is specifically engineered for the 2006 Scion tC, offering a direct replacement for stock components. It is ideal for street, track, or aggressive driving scenarios where increased clamping force and durability are required. The assembly is a bolt-on upgrade that does not require modifications for installation. The kit includes the pressure plate and race disc, ensuring a complete upgrade for enhanced performance and longevity. Compatible with the stock flywheel, this clutch is designed to handle higher torque loads, making it suitable for performance applications and extended use in demanding driving environments.

Overview

ACT HD/Race Sprung 4 Pad Kit

TC7-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 14.8
  • Torque Capacity (ft/lbs.): 400
  • Torque Capacity Over OE: 0.65
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125

Applications

  • 2008-2015 Scion xB
  • 2007-2008 Toyota Camry
  • 2009-2012 Toyota Corolla
  • 2006-2010 Scion tC
  • 2009-2013 Toyota Matrix

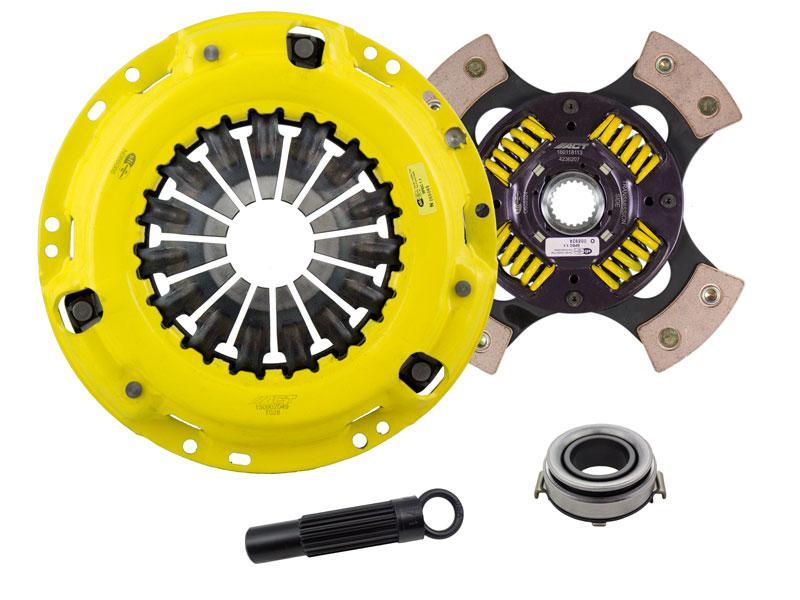

What's In The Box?

  • Clutch Friction Disc (4236207)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB084)
  • Clutch Pressure Plate (T028)

References

Warranty

  • Manufacturer 1 Year Warranty
