• ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Scion tC (2012) (TC8-HDG4)
1 1

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Scion tC (2012) (TC8-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Scion tC (2012) (TC8-HDG4)

TC8-HDG4

Out of stock

$615.00 USD
$615.00 USD $615.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the 2012 Scion tC (model TC8-HDG4) is a high-performance clutch upgrade designed to enhance durability and power transfer. This kit features ACT's most popular Heavy Duty pressure plate, which employs an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a rigorous four-stage heat-treating process, ensuring superior performance and reliability under demanding conditions. The inclusion of a precision cover stamping provides added rigidity and consistency, while the 4-pad spring-centered race disc effectively dampens torsional vibrations for smoother engagement and improved drivability. This combination delivers increased holding capacity and consistent performance during spirited driving or racing applications.

Designed specifically for the 2012 Scion tC, this clutch kit is a direct replacement for stock components, offering a bolt-on installation for enthusiasts seeking enhanced performance. It is suitable for street, track, and racing use, providing a reliable upgrade for high-horsepower builds or aggressive driving styles. The kit includes the heavy-duty pressure plate and race disc, with no additional components required for installation. Compatible with the stock flywheel and clutch system, it ensures proper fitment and optimal operation. This clutch kit is ideal for drivers looking to improve clutch engagement, durability, and overall vehicle performance in demanding driving environments.

Overview

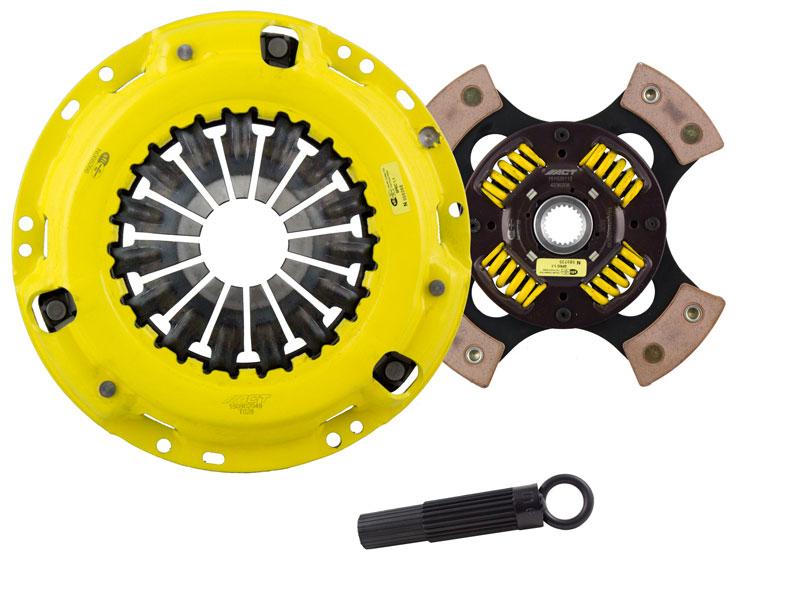

ACT HD/Race Sprung 4 Pad Kit

TC8-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.1
  • Torque Capacity (ft/lbs.): 400
  • Torque Capacity Over OE: 0.65
  • Pressure Plate Type: Heavy Duty
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 2011-2016 Scion tC
  • 2010-2011 Toyota Camry

What's In The Box?

  • Clutch Pressure Plate (T028)
  • Clutch Friction Disc (4236208)
  • Clutch Alignment Tool (AT116)

References

Warranty

  • Manufacturer 1 Year Warranty
