ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Corolla (1986) (TL2-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Corolla (1986) (TL2-HDG4)

TL2-HDG4

Out of stock

$596.00 USD
$596.00 USD $596.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Toyota Corolla (1986) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 4-pad spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and enhanced control. Constructed with precision cover stampings, this clutch kit delivers increased rigidity and reliability, making it suitable for aggressive street or race applications.

Designed for the 1986 Toyota Corolla, this clutch kit is a direct replacement upgrade for stock components. It is ideal for drivers seeking increased clamping force and durability for spirited driving or track use. The assembly is a bolt-on installation, compatible with the original flywheel and transmission setup. The kit typically includes the pressure plate, clutch disc, and release bearing, ensuring a complete upgrade. Suitable for use in street, track, or performance driving scenarios, this clutch kit enhances power transfer and longevity, making it a reliable choice for enthusiasts looking to improve their vehicle’s clutch performance.

Overview

ACT HD/Race Sprung 4 Pad Kit

TL2-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.7
  • Torque Capacity (ft/lbs.): 265
  • Torque Capacity Over OE: 0.86
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1985-1988 Chevrolet Nova
  • 1991-1998 Toyota Tercel
  • 1992-1998 Toyota Paseo
  • 1989-1991 Geo Prizm
  • 1985-1985 Toyota MR2
  • 1986-1991 Toyota Corolla

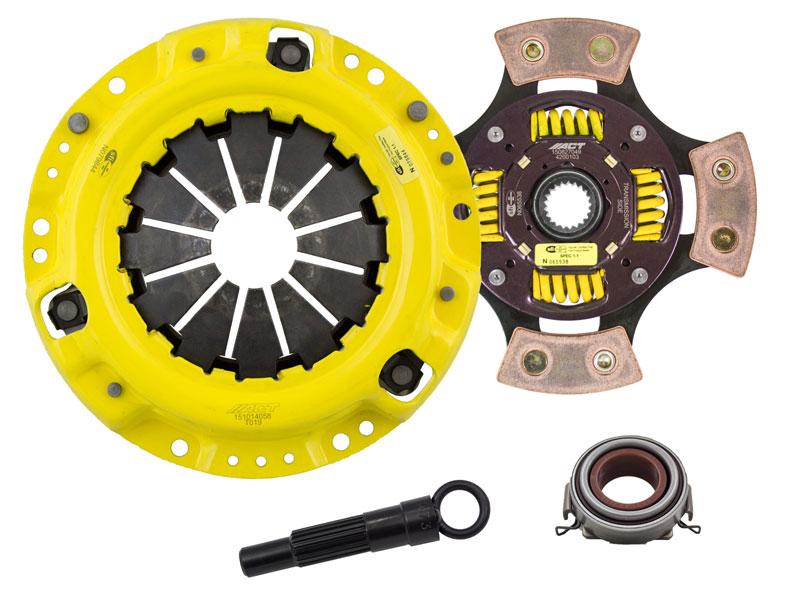

What's In The Box?

  • Clutch Friction Disc (4200103)
  • Clutch Alignment Tool (ATK73)
  • Clutch Release Bearing (RB371)
  • Clutch Pressure Plate (T019)

References

Warranty

  • Manufacturer 1 Year Warranty
