ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota 4Runner (87) (TS1-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota 4Runner (87) (TS1-HDG4)

TS1-HDG4

Out of stock

$548.00 USD
$677.00 USD $548.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Toyota 4Runner (87) is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The inclusion of a 4-pad spring-centered race disc helps damp torsional vibrations effectively, providing smooth engagement and enhanced control. Built with precision cover stampings, this clutch assembly offers rigidity and reliability, making it suitable for aggressive street or race applications.

Designed for 1987 Toyota 4Runner models, this clutch kit is a direct replacement for stock components, offering improved clamping force and durability. It is ideal for off-road, street, or track use where increased performance and longevity are required. The kit includes the heavy-duty pressure plate and race disc, ensuring a straightforward bolt-on installation. Compatible with vehicles equipped with a compatible engine and chassis, this clutch kit enhances driving performance by providing reliable power transfer and consistent pedal feel. It is suited for enthusiasts seeking a robust upgrade to handle higher torque loads and spirited driving conditions.

Overview

ACT HD/Race Sprung 4 Pad Kit

TS1-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 16.6
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 0.69
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21

Applications

  • 1982-1985 Toyota Celica
  • 1985-1987 Toyota Pickup
  • 1985-1987 Toyota 4Runner
  • 1984-1987 Toyota Cressida
  • 1986-1988 Toyota Supra

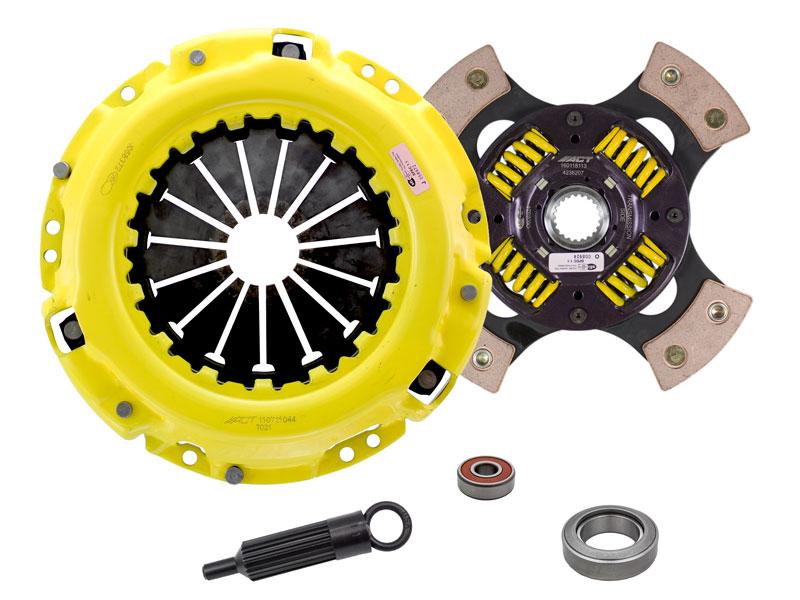

What's In The Box?

  • Clutch Friction Disc (4236207)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T021)

References

Warranty

  • Manufacturer 1 Year Warranty
