ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Camry (1988) (TY3-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Camry (1988) (TY3-HDG4)

TY3-HDG4

Out of stock

$580.00 USD
$716.00 USD $580.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the 1988 Toyota Camry (TY3-HDG4) is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under stress. The clutch disc incorporates a four-pad spring-centered race design that effectively dampens torsional vibrations, providing smoother engagement and enhanced control. Constructed with precision cover stampings, this assembly offers rigidity and reliability for spirited driving and racing applications.

Designed specifically for the 1988 Toyota Camry, this clutch kit is a direct replacement for stock components, suitable for street and track use. It is engineered to handle increased power and torque, making it ideal for performance enthusiasts seeking durability and consistent engagement. The kit includes the pressure plate, clutch disc, and necessary hardware for installation, ensuring a straightforward upgrade process. Compatible with the stock flywheel, this clutch assembly is optimized for vehicles requiring a robust, high-capacity clutch solution to improve performance and longevity during aggressive driving or racing scenarios.

Overview

ACT HD/Race Sprung 4 Pad Kit

TY3-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.5
  • Torque Capacity (ft/lbs.): 500
  • Torque Capacity Over OE: 0.69
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1990-1991 Lexus ES250
  • 1988-1989 Toyota Celica
  • 1996-2000 Toyota RAV4
  • 1988-1991 Toyota Camry

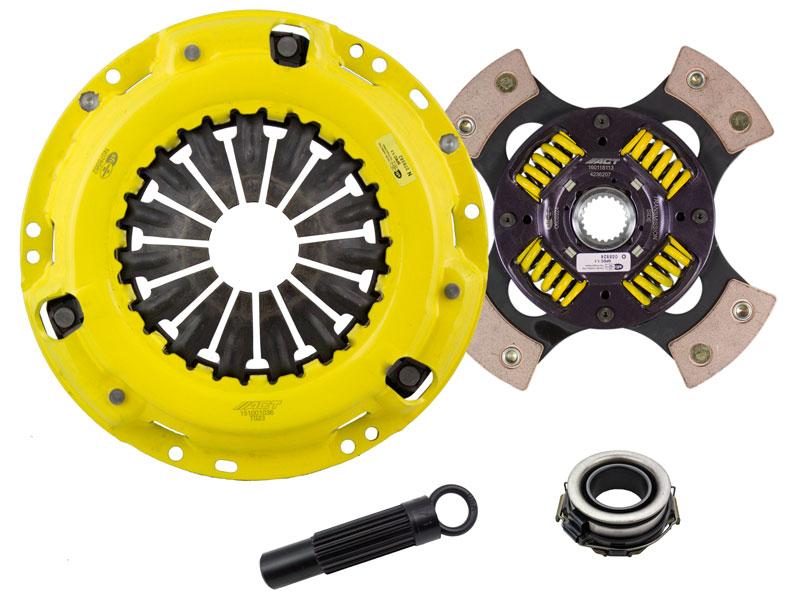

What's In The Box?

  • Clutch Friction Disc (4236207)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB219)
  • Clutch Pressure Plate (T023)

References

Warranty

  • Manufacturer 1 Year Warranty
