• ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Camry (02) (TY4-HDG4)
1 1

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Camry (02) (TY4-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Toyota Camry (02) (TY4-HDG4)

TY4-HDG4

Out of stock

$580.00 USD
$716.00 USD $580.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Toyota Camry (02) is a high-performance clutch assembly designed to enhance durability and power transfer. Featuring ACT's most popular Heavy Duty pressure plate, this kit employs an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a rigorous four-stage heat-treating process to ensure maximum performance and reliability. Precision cover stampings provide added rigidity and consistency, while the 4-pad spring-centered race disc effectively dampens torsional vibrations, resulting in smoother engagement and improved drivability under demanding conditions.

This clutch kit is specifically engineered for the 2002 Toyota Camry, offering a direct replacement for stock components. It is suitable for street use, track days, and high-performance applications where increased clamping force and durability are required. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Designed to withstand aggressive driving and high torque loads, this clutch assembly is ideal for enthusiasts seeking a reliable, high-performance upgrade for daily driving or spirited driving on the street and track.

Overview

ACT HD/Race Sprung 4 Pad Kit

TY4-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.5
  • Torque Capacity (ft/lbs.): 500
  • Torque Capacity Over OE: 0.69
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1992-1993 Lexus ES300
  • 1992-2002 Toyota Camry
  • 1999-2002 Toyota Solara

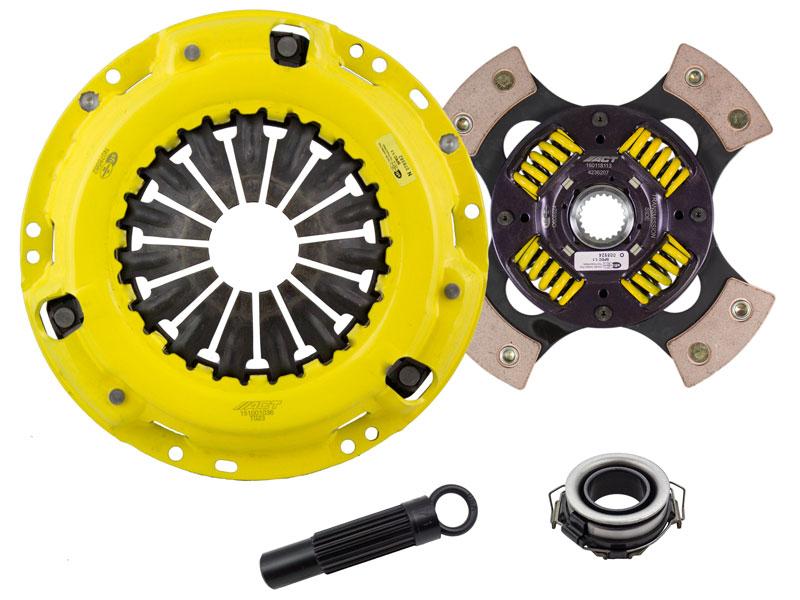

What's In The Box?

  • Clutch Friction Disc (4236207)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB446)
  • Clutch Pressure Plate (T023)

References

Warranty

  • Manufacturer 1 Year Warranty
