ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Volkswagen Corrado (92) (VR1-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Volkswagen Corrado (92) (VR1-HDG4)

VR1-HDG4

Out of stock

$548.00 USD
$677.00 USD $548.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Volkswagen Corrado (92) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process, ensuring durability and consistent performance under intense use. The kit includes a 4-pad spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and improved power transfer. Constructed with precision cover stampings, this clutch kit offers enhanced rigidity and reliability, making it suitable for both street and race applications.

Designed specifically for the 1992 Volkswagen Corrado, this clutch kit is compatible with models equipped with appropriate engine configurations. It serves as a direct replacement or upgrade for stock clutch components, delivering increased clamping force and durability for high-performance driving. The kit is ideal for track use, spirited street driving, or any scenario demanding a robust clutch solution. Installation involves bolt-on replacement of existing clutch parts, and the kit includes all necessary components for a complete upgrade. This clutch kit ensures reliable operation and improved handling for enthusiasts seeking maximum performance from their Corrado.

Overview

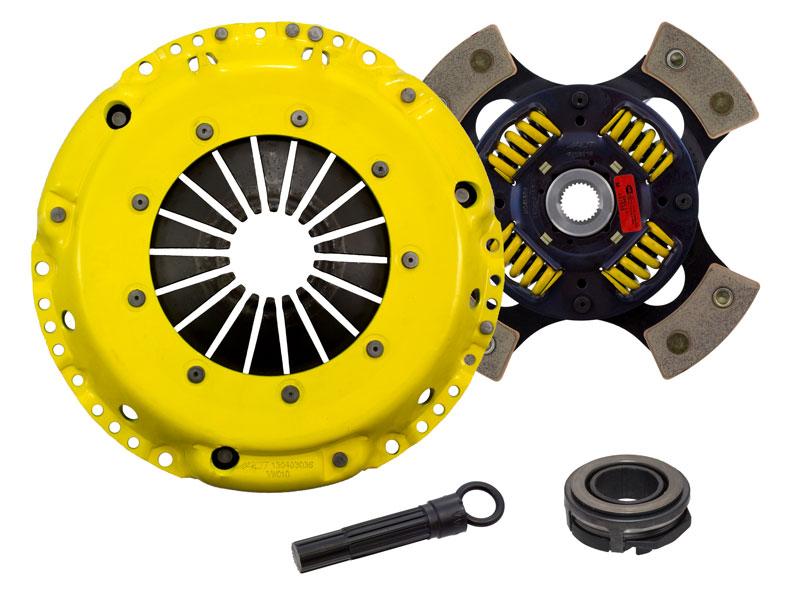

ACT HD/Race Sprung 4 Pad Kit

VR1-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13.7
  • Torque Capacity (ft/lbs.): 440
  • Torque Capacity Over OE: 0.72
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9
  • Clutch Disc Diameter (mm): 228
  • Disc Material: Ceramic
  • Input Spline Quantity: 28
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1990-1994 Volkswagen Corrado
  • 1999-2004 Volkswagen Beetle
  • 1990-1997 Volkswagen Passat
  • 1995-2005 Volkswagen Golf
  • 1995-2005 Volkswagen Jetta
  • 1999-2002 Audi TT
  • 1992-1996 Volkswagen EuroVan

What's In The Box?

  • Clutch Friction Disc (4228215)
  • Clutch Alignment Tool (AT96)
  • Clutch Release Bearing (RB803)
  • Clutch Pressure Plate (VW010)

References

Warranty

  • Manufacturer 1 Year Warranty
