ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Kia Sephia (96) (Z61-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Kia Sephia (96) (Z61-HDG4)

Z61-HDG4

In stock

$667.00 USD
$667.00 USD $667.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Kia Sephia (96) is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The clutch disc is a four-pad, spring-centered race component that effectively dampens torsional vibrations, providing smooth engagement and enhanced power transfer. Constructed with precision cover stampings, this assembly offers rigidity and reliability, making it suitable for racing and high-stress applications.

Designed specifically for the 1996 Kia Sephia, this clutch kit is a direct replacement for stock components and is ideal for street or track use where increased durability and performance are required. It fits models equipped with compatible manual transmissions and is engineered to handle higher torque loads. Installation involves standard bolt-on procedures, ensuring a straightforward upgrade for enthusiasts seeking improved clutch response and longevity. The kit includes the pressure plate, clutch disc, and necessary hardware, providing a comprehensive solution for enhanced drivetrain performance in demanding driving environments.

Overview

ACT HD/Race Sprung 4 Pad Kit

Z61-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.9
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 0.98
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1989-1992 Ford Probe
  • 1996-2001 Kia Sephia
  • 1988-1989 Mazda 323
  • 1988-1992 Mazda 626
  • 1988-1992 Mazda MX-6
  • 1995-2002 Kia Sportage
  • 2000-2003 Kia Spectra

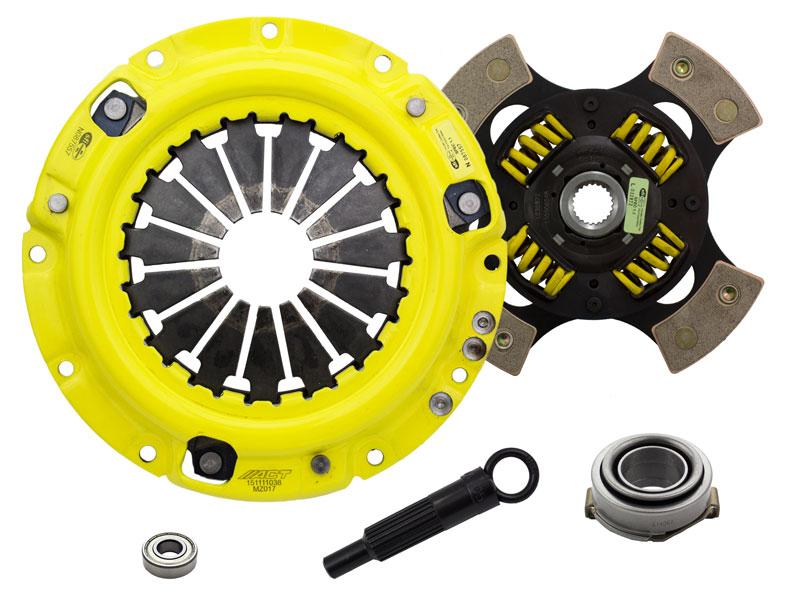

What's In The Box?

  • Clutch Pressure Plate (MZ017)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB091)
  • Clutch Friction Disc (4224205)
  • Clutch Alignment Tool (AT05)

References

Warranty

  • Manufacturer 1 Year Warranty
