ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Mazda 929 (1988) (Z64-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Mazda 929 (1988) (Z64-HDG4)

Z64-HDG4

Out of stock

$509.00 USD
$629.00 USD $509.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Mazda 929 (1988) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance. The kit includes a 4-pad spring-centered race disc that effectively dampens torsional vibrations, providing smoother engagement and enhanced control. Constructed with precision cover stampings, this clutch offers increased rigidity and reliability, making it suitable for high-stress applications.

Designed specifically for the 1988 Mazda 929, this clutch kit is a direct replacement for stock components and is ideal for street and track use. It is engineered to withstand increased power and aggressive driving styles, delivering improved torque capacity and longevity. The assembly is bolt-on compatible with the factory transmission, ensuring straightforward installation. The kit includes all necessary components for a complete upgrade, providing a reliable solution for drivers seeking enhanced performance and durability in their clutch system. Suitable for enthusiasts and professionals alike, this clutch kit optimizes vehicle responsiveness and driving confidence.

Overview

ACT HD/Race Sprung 4 Pad Kit

Z64-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 0.72
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 15.7

Applications

  • 1988-1991 Mazda 626
  • 1989-1992 Ford Probe
  • 1988-1991 Mazda 929
  • 1988-1992 Mazda MX-6

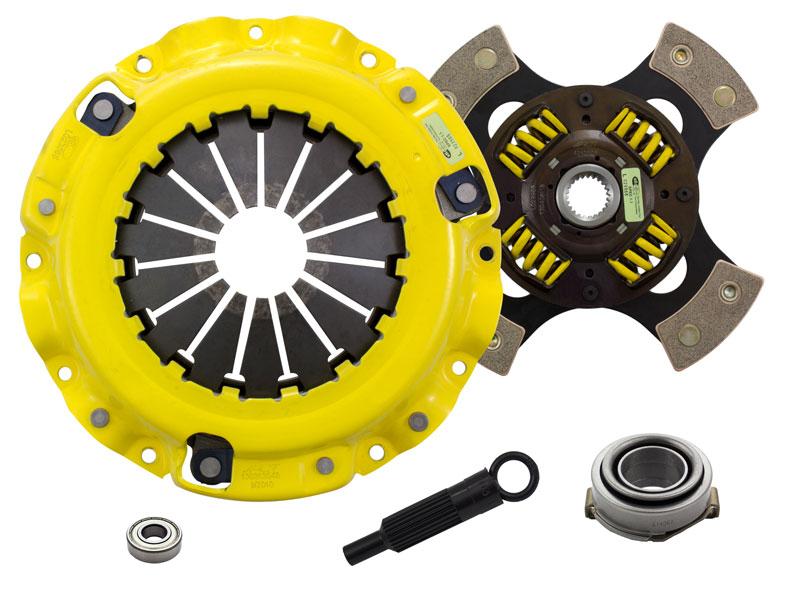

What's In The Box?

  • Clutch Friction Disc (4240208)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
