ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Mazda Protege (01) (Z66-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Mazda Protege (01) (Z66-HDG4)

Z66-HDG4

Out of stock

$590.00 USD
$728.00 USD $590.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for the Mazda Protege (01) features ACT's most popular heavy-duty pressure plate designed for high-performance applications. Constructed with an exclusive diaphragm design, this clutch kit increases clamp load, reduces deflection, and enhances overall clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under demanding conditions. The kit includes a 4-pad spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and improved power transfer. Built with precision cover stampings, the components deliver rigidity and reliability, making it suitable for spirited driving and racing scenarios.

This clutch kit is specifically designed for the 2001 Mazda Protege equipped with the Z66 chassis code. It is a direct replacement upgrade for stock clutch components, offering increased holding capacity and durability for high-stress driving. Ideal for track use, street performance, or aggressive daily driving, this kit ensures reliable engagement and long-lasting performance. Installation involves bolt-on replacement of the existing clutch assembly, with all necessary components included for a straightforward upgrade. Compatible with the stock flywheel, this clutch kit provides a significant performance boost for enthusiasts seeking enhanced clutch performance and reliability.

Overview

ACT HD/Race Sprung 4 Pad Kit

Z66-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Torque Capacity (ft/lbs.): 355
  • Torque Capacity Over OE: 0.87
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 13.7

Applications

  • 2001-2003 Mazda Protege
  • 2002-2003 Mazda Protege5
  • 1993-1997 Mazda MX-6
  • 1993-1997 Ford Probe
  • 1993-2002 Mazda 626

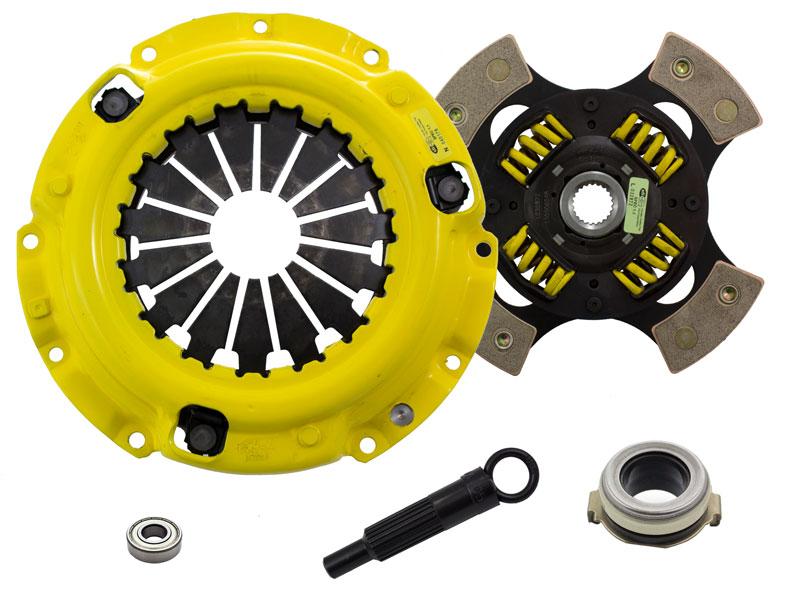

What's In The Box?

  • Clutch Friction Disc (4224205)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ018)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB110)

References

Warranty

  • Manufacturer 1 Year Warranty
