ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Ford Escort (1991) (ZP2-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Ford Escort (1991) (ZP2-HDG4)

ZP2-HDG4

In stock

$690.00 USD
$690.00 USD $690.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance under intense use. The kit includes a 4-pad spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and enhanced control. Constructed with precision cover stampings, this clutch assembly offers rigidity and reliability, making it suitable for high-stress applications.

This clutch kit is specifically engineered for the 1991 Ford Escort, serving as a direct upgrade for stock components. It is ideal for racing, track days, or aggressive street driving where increased clamping force and durability are required. The assembly is a bolt-on replacement, ensuring straightforward installation without modifications. The kit includes all necessary components for a complete upgrade, providing improved torque capacity and longevity. Designed to withstand high heat and stress, this clutch kit enhances performance for enthusiasts seeking a reliable, high-performance upgrade for their Escort.

Overview

ACT HD/Race Sprung 4 Pad Kit

ZP2-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.6
  • Torque Capacity (ft/lbs.): 285
  • Torque Capacity Over OE: 0.87
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1991-1996 Ford Escort
  • 1990-1995 Mazda Protege

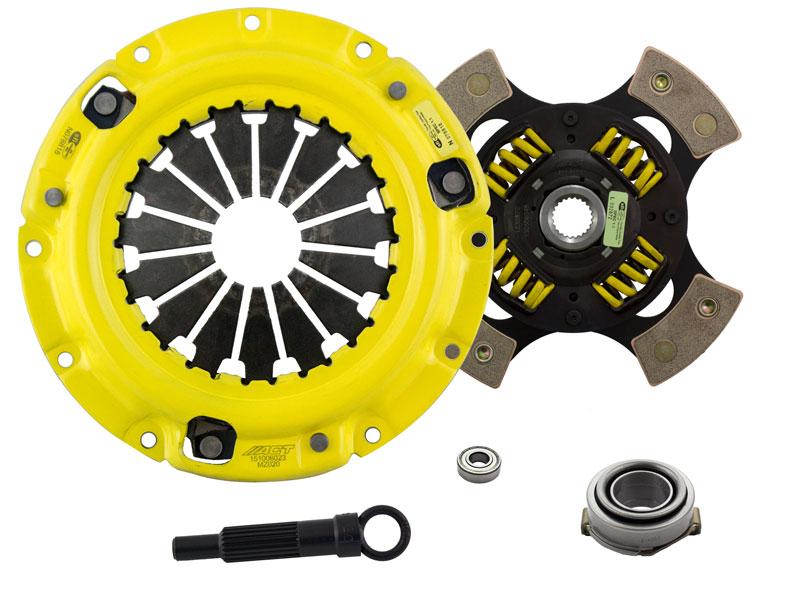

What's In The Box?

  • Clutch Friction Disc (4224205)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (MZ020)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
