ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Mazda MX-5 Miata ND (16-18) (ZM10-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Mazda MX-5 Miata ND (16-18) (ZM10-HDG6)

ZM10-HDG6

Out of stock

$1,045.00 USD
$1,290.00 USD $1,045.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit for the Mazda MX-5 Miata ND (2016-2018) is a high-performance clutch assembly designed for demanding driving conditions. This kit includes ACT's most popular Heavy Duty pressure plate combined with a 6-pad, spring-centered race disc, providing exceptional durability and consistent engagement. The pressure plate features an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. All diaphragms undergo a four-stage heat-treating process to ensure maximum performance and longevity. The precision cover stampings enhance rigidity and consistency, making this clutch suitable for aggressive street driving or track use.

This clutch kit is specifically engineered for 2016-2018 Mazda MX-5 Miata models, offering a direct replacement for stock components. It is ideal for enthusiasts seeking improved performance, durability, and heat resistance during spirited driving or racing. The assembly is a bolt-on upgrade that requires no additional modifications for installation. The kit typically includes the pressure plate, race disc, and necessary hardware, ensuring a comprehensive upgrade. Designed for street, track, or light competition applications, this clutch enhances power transfer and pedal feel while maintaining reliable operation under high-stress conditions.

Overview

Heavy Duty / Race 6-Pad Sprung Clutch Kit by ACT

ZM10-HDG6 kit features ACT's most popular Heavy Duty pressure plate and their 6-pad, spring-centered race disc.

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Feel - Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
  • Life - Moderate friction life, extended by ACT's exclusive diaphragm design
  • Quality - Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use - Recommended for high horsepower street or race use
  • ACT Difference - 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Please Note: 225mm upgrade. Must use ACT flywheel (included in kit).

Applications

  • 2016 - 2018 Mazda MX-5 Miata (ND)

Specifications

  • Torque Capacity (ft/lbs.): 399
  • Torque Capacity Over OE: 87%
  • Spline Count: 10
  • Spline Size (in.): 15/16
  • Disc Diameter (in/mm): 8.8/224
  • Product Weight (lbs.): 27.4

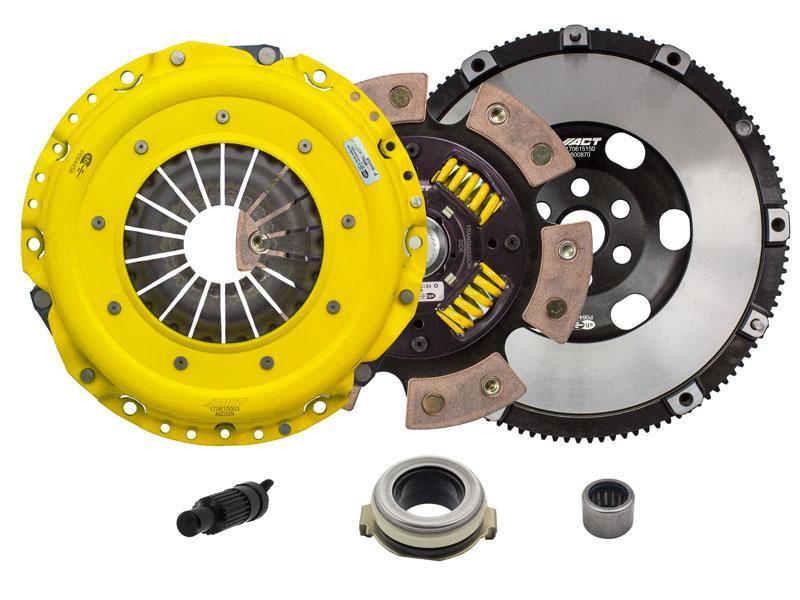

What's In The Box?

  • 1 - Heavy Duty Pressure Plate
  • 1 - 6-Pad Spring Centered Race Disc
  • 1 - ACT Flywheel
  • 1 - Release Bearing
  • 1 - Pilot Bearing
  • 1 - Alignment Tool

References

Warranty

  • ACT 1 Year Limited Warranty
View full details
