ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Chevrolet Camaro (93-97) (GM13-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Chevrolet Camaro (93-97) (GM13-HDG6)

GM13-HDG6

Out of stock

$838.00 USD
$1,034.00 USD $838.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6-Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which employs an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate components undergo a four-stage heat-treating process to ensure durability and consistent performance. The 6-pad, spring-centered race disc is engineered to provide smooth engagement and reliable power transfer, making it suitable for aggressive street and track use. Constructed with precision stampings and high-quality materials, this clutch kit delivers enhanced clamping force and longevity for high-stress applications.

Designed for 1993–1997 Chevrolet Camaro models, this clutch kit is a direct replacement upgrade for stock components. It is ideal for enthusiasts seeking improved performance and durability in street, track, or drag racing scenarios. The kit is a bolt-on installation, requiring no modifications for compatible vehicles. It includes all necessary components for a complete clutch replacement, ensuring a straightforward upgrade process. Suitable for vehicles with high horsepower or torque demands, this clutch kit provides increased holding capacity and consistent engagement under demanding conditions.

Overview

Heavy Duty Race Sprung 6-Pad Clutch Kit by ACT

GM13-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance.

ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for high horsepower street or race use
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 1993 - 1997 Chevrolet Camaro Z28
  • 1993 - 1993 Chevrolet Camaro Pace Car Edition
  • 1993 - 1997 Pontiac Firebird Formula
  • 1993 - 1997 Pontiac Firebird Trans Am
  • 1993 - 1997 Pontiac Firebird Trans Am GT

Specifications

  • Product Weight (lbs.) - 19.5
  • Torque Capacity (ft/lbs.) - 815
  • Torque Capacity Over OE - 77%
  • Alignment Tool Included - ATGM026
  • Disc Diameter (Inches) - 11
  • Disc Diameter (mm) - 280
  • Disc Material - Ceramic
  • Input Shaft Diameter (Inches) - 1-1/8
  • Spline Count - 26
  • Pad Quantity - 6
  • Pilot Bushing Included - PB0656A
  • Pressure Plate Type - Heavy Duty
  • Release Bearing Included - RB845
  • Disc Type - Sprung Race Disc

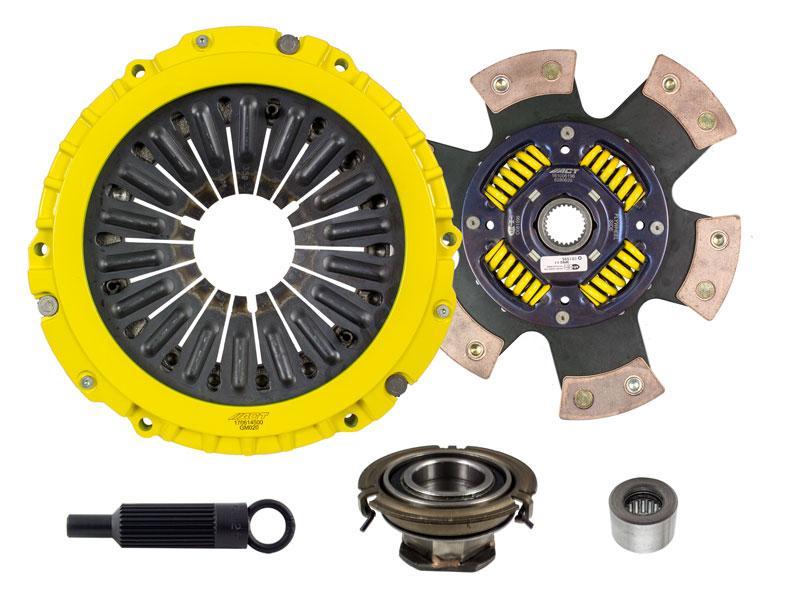

What's In The Box?

  • 1 - ACT HD Pressure Plate
  • 1 - ACT 6-Pad Sprung Race Disc
  • 1 - ACT Release Bearing
  • 1 - ACT Pilot Bushing
  • 1 - Alignment Tool

References

Warranty

  • Manufacturer's Warranty
